PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower Combi 85 M Q Diagram

Description

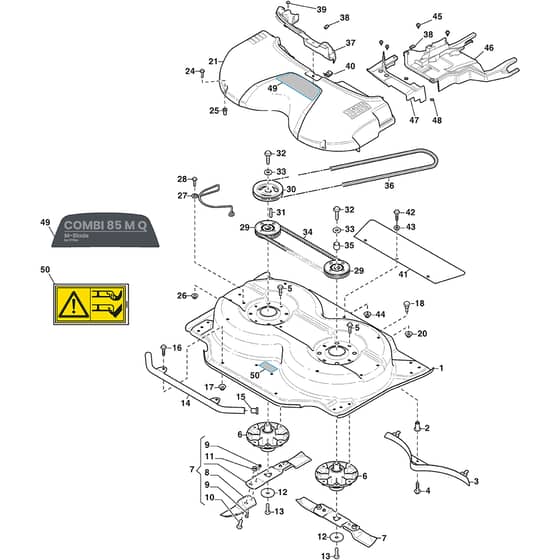

Stiga PARK 300 MC Parts Diagram

Product Name - PARK 300 MC

Model Year - 2024-2025

Model Type - V 302 S

Art.N - 2F5820245/ST1

Engine Model -

	Part No.	Details
1	MO387561529/0 Available to backorder	Mower Deck. Combi 85 (Grey)	£464.56 £387.13
3	MO1134-6227-01 Available to backorder	Mulching Plug 85C	£49.26 £41.05
6	MO387203000/0 In stock	Shaft Flange Assy	£114.02 £95.02
7	MO1134-9116-01 Available to backorder	Blade Bar Assy (85C)	£90.22 £75.18
8	MO1134-9119-01 In stock	Blade Kit Assy 2 knivar.2 blade tips	£33.66 £28.05
9	MO1134-9054-01 In stock	Shear Bolt Kit 6 bultar.6 bolts+nuts	£8.59 £7.16
10	MO1134-6311-01 Available to backorder	Bolt	£2.94 £2.45
11	MO1134-6312-01 Available to backorder	Nut	£2.53 £2.11
12	MO1134-6211-01 Available to backorder	Washer	£3.10 £2.58
14	MO387869259/0 Available to backorder	Front Guard Tube-Grey	£44.77 £37.31
15	MO9403-0025-80 Available to backorder	End Plug. Grey	£2.40 £2.00
18	MO1134-0240-00 In stock	Screw	£8.80 £7.33
21	MO337060031/0 Available to backorder	Belt Cover	£39.42 £32.85
24	MO9945-0825-16 In stock	Screw	£2.40 £2.00
25	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
26	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
27	MO1134-6429-01 Available to backorder	Belt Guide	£15.20 £12.67
28	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
29	MO1134-9127-01 In stock	Toothed Pulley Assy	£50.68 £42.23
30	MO1137-0010-01 Available to backorder	Pulley	£36.59 £30.49
31	MO9600-0168-01 Available to backorder	Key	£4.24 £3.53
32	MO112692395/2 In stock	Screw	£3.25 £2.71
33	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16

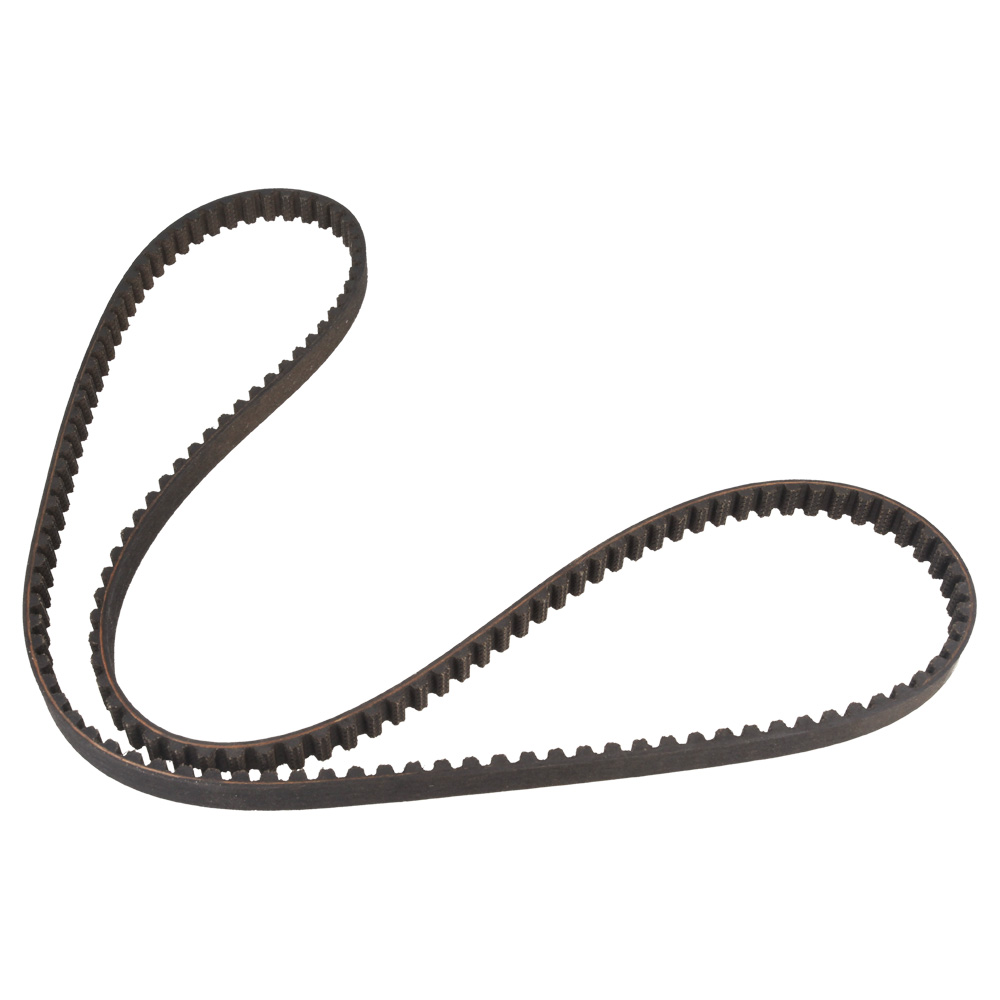

34	MO1134-9182-02 In stock	Toothed Belt	£57.90 £48.25
34	MO1134-9182-01 In stock	Toothed Belt	£33.66 £28.05
35	MO1134-5400-04 Available to backorder	Spacer	£4.93 £4.11

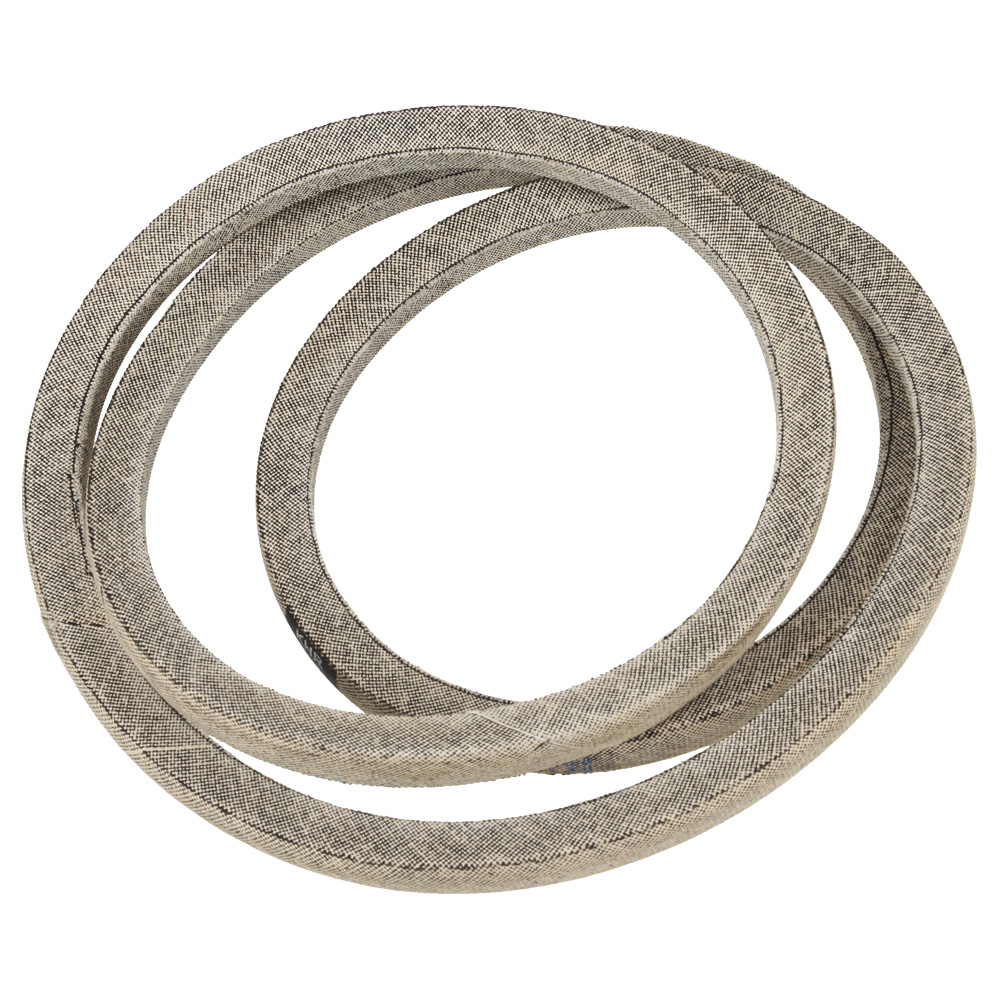

36	MO1134-9186-01 In stock	V-Belt Replacing Service code 1134-9186-01	£51.17 £42.64
37	MO337060020/0 Available to backorder	Belt Cover	£10.91 £9.09
38	MO112437509/0 Available to backorder	Plate	£1.55 £1.29
39	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
40	MO1134-4620-02 Available to backorder	Nut	£7.97 £6.64
41	MO1134-6281-01 Available to backorder	Rubber Guard	£19.28 £16.07
42	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
43	MO1134-4185-01 Available to backorder	Flange Washer	£6.46 £5.38
44	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
45	MO125943011/0 Available to backorder	Screw	£9.52 £7.93
46	MO337060021/1 Available to backorder	Belt Cover	£25.98 £21.65
47	MO337600038/0 Available to backorder	Belt Cover	£8.94 £7.45
48	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
49	MO114373125/0 Available to backorder	Label - "Combi 85 M Q" M-Blade	£7.66 £6.38
50	MO114356699/1 Available to backorder	Cutting Deck Danger Label	£1.63 £1.36
