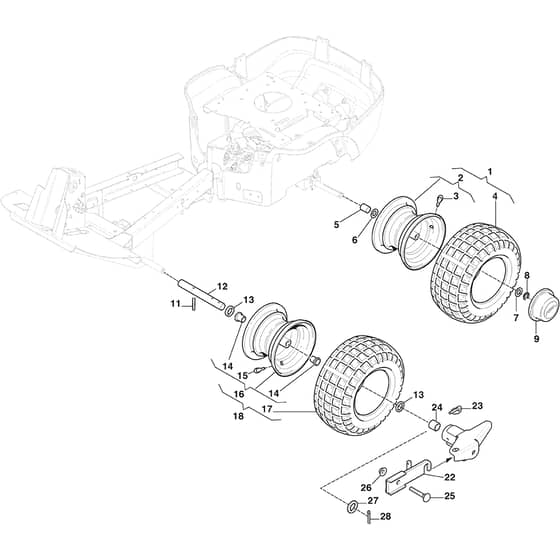

PARK 300 M - 2020-2024 - 2F5820241/ST1P - Stiga Front Mower Wheel Diagram

Name: PARK 300 M - 2020-2024 - 2F5820241/ST1P - Stiga Front Mower Wheel Diagram
SKU: park_300_m_2f5820241_st1p_wheel-group
Price: 1.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 300 M - 2020-2024 - 2F5820241/ST1P - Stiga Front Mower Wheel Diagram

Description

Stiga PARK 300 M Parts Diagram

Product Name - PARK 120 - PARK 300M

Model Year - 2020-2024

Model Type - V 302

Art.N - 2F5820241/ST1P

Engine Model - ST 400

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387680301/0 Available to backorder	Wheel	£154.86 £129.05
2	MO187000451/1 Available to backorder	Wheel Hub	£74.62 £62.18
5	MO1134-4845-02 Available to backorder	Hub Sleeve	£8.59 £7.16
7	MO1134-4981-01 Available to backorder	Washer	£2.95 £2.46
8	MO9653-0001-04 Available to backorder	Lock Ring	£2.26 £1.88
9	MO1137-1006-01 Available to backorder	Hub Cap	£7.03 £5.86
11	MO112645710/0 Available to backorder	Locating Pin	£2.12 £1.77
12	MO1134-0075-00 Available to backorder	Front Axle	£18.72 £15.60
13	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
14	MO137038001/0 Available to backorder	Bush	£7.19 £5.99
15	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
16	MO187000450/1 Available to backorder	Wheel Hub	£67.57 £56.31
17	MO137950010/0 Available to backorder	Tyre 15X5.50-8 Deli Tire	£75.31 £62.76
18	MO387680303/0 Available to backorder	Wheel	£147.80 £123.17
22	MO1134-7465-01 Available to backorder	Attachment Kit Support RH + LH	£63.35 £52.79
23	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
24	MO9548-0026-01 Available to backorder	Bearing	£30.97 £25.81
25	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
26	MO9739-1031-22 In stock	Nut	£1.97 £1.64
27	MO9699-0042-02 Available to backorder	Washer	£6.62 £5.52
28	MO9599-0080-02 Available to backorder	Cotter Pin	£2.12 £1.77
