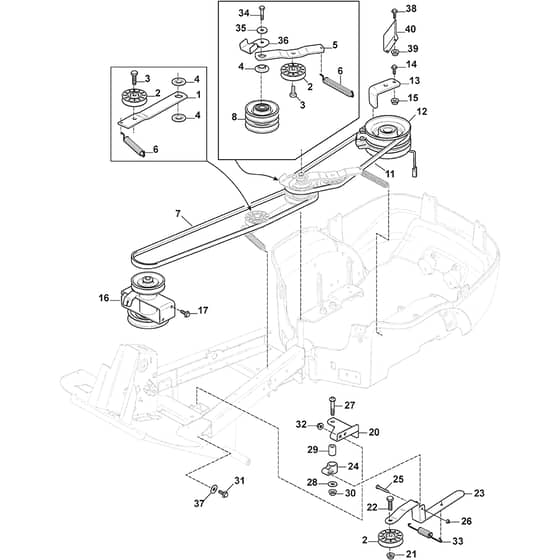

PARK 300 M - 2016-2024 - 2F5820241/S16 - Stiga Front Mower PTO Diagram

Description

Stiga PARK 300 M Parts Diagram

Product Name - PARK 120 - PARK 300M

Model Year - 2016-2024

Model Type - V 302

Art.N - 2F5820241/S16

Engine Model - ST 400

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0791-01 Available to backorder	Lever	£18.10 £15.08
2	MO387605008/0 In stock	Tension Roller (Grey)	£35.20 £29.33
3	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
4	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
5	MO1137-0918-01 Available to backorder	Lever	£20.69 £17.24
6	MO1134-5824-01 In stock	Spring	£5.48 £4.57
7	MO1134-9167-02 Available to backorder	Belt Service code for Belt. 9585-0215-01	£33.68 £28.07
8	MO387605005/0 Available to backorder	Belt Pulley	£87.28 £72.73
11	MO1134-9172-01 In stock	Belt Replaced by Service Code. 1134-9172-01	£31.22 £26.02
12	MO118399074/0 Available to backorder	Magnet Clutch	£344.89 £287.41
16	MO387605006/0 Available to backorder	Belt Pulley	£147.80 £123.17
17	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
20	MO387773515/0 Available to backorder	Bracket	£12.67 £10.56
22	MO112794400/0 Available to backorder	Screw	£1.91 £1.59
23	MO387205002/1 Available to backorder	Lever	£108.72 £90.60
24	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
25	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
26	MO112154510/0 In stock	Nut	£1.55 £1.29
27	MO9930-1050-12 Available to backorder	Screw	£2.54 £2.12
28	MO9699-0030-02 In stock	Washer	£1.97 £1.64
29	MO1134-4619-01 Available to backorder	Spacer	£9.16 £7.63
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
33	MO1137-1029-01 Available to backorder	Spring	£3.52 £2.93
34	MO1134-7829-01 Available to backorder	Screw	£1.97 £1.64
35	MO1134-5127-01 Available to backorder	Washer	£5.06 £4.22
36	MO1137-0800-01 Available to backorder	Bracket	£6.34 £5.28
37	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
38	MO9959-0820-16 In stock	Screw Only Park 120	£1.55 £1.29
39	MO112154220/0 Available to backorder	Nut Only Park 120	£1.55 £1.29
