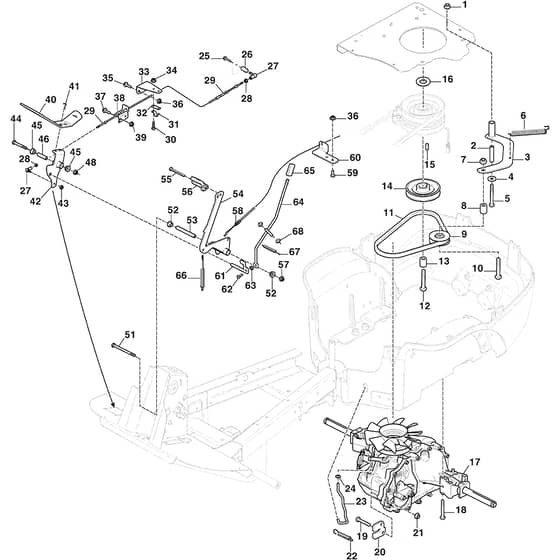

PARK 300 - 2020-2024 - 2F5820421/ST2P - Stiga Front Mower Transmission Diagram

Name: PARK 300 - 2020-2024 - 2F5820421/ST2P - Stiga Front Mower Transmission Diagram
SKU: park_300_2f5820421_st2p_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 300 - 2020-2024 - 2F5820421/ST2P - Stiga Front Mower Transmission Diagram

Description

Stiga PARK 300 Parts Diagram

Product Name - PARK 300

Model Year - 2020-2024

Model Type - V 302 S

Art.N - 2F5820421/ST2P

Engine Model - ST 450

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112155000/0 In stock	Nut	£1.55 £1.29
2	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
3	MO1137-0769-01 Available to backorder	Lever	£32.38 £26.98
4	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
5	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
6	MO1131-1507-00 Available to backorder	Spring	£32.38 £26.98
7	MO9739-1031-22 In stock	Nut	£1.97 £1.64
8	MO1134-5210-05 Available to backorder	Spacer	£8.52 £7.10
9	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
10	MO112692395/2 In stock	Screw	£3.24 £2.70
11	MO1134-9168-01 In stock	Belt Replaced by Service code. 1134-9168-01	£20.40 £17.00
12	MO9987-5332-16 Available to backorder	Screw	£2.12 £1.77
13	MO1137-0835-01 Available to backorder	Spacer	£4.22 £3.52
14	MO1137-0714-01 Available to backorder	Engine Pulley	£27.31 £22.76
15	MO9600-0251-00 Available to backorder	Key	£4.50 £3.75
16	MO1134-5017-02 Available to backorder	Washer	£2.81 £2.34
17	MO1137-0890-01 Available to backorder	Transmission Unit	£834.68 £695.57
18	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
19	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
20	MO1137-0897-01 Available to backorder	Plate	£6.34 £5.28
22	MO1137-0936-01 Available to backorder	Spring	£1.82 £1.52
23	MO1137-0834-01 Available to backorder	Rod	£7.03 £5.86
24	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
25	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
26	MO1134-4013-01 Available to backorder	Spacer	£20.96 £17.47
27	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
29	MO1134-2766-10 Available to backorder	Cable	£87.28 £72.73
30	MO112789008/0 Available to backorder	Screw replaced by 112789021.0	£1.82 £1.52
30	MO112789021/0 Available to backorder	Screw	£1.82 £1.52
31	MO1134-0266-00 Available to backorder	Attaching Clamp	£7.03 £5.86
32	MO325547443/0 Available to backorder	Clamp Plate	£6.05 £5.04
34	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
35	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
36	MO112292102/0 In stock	Nut	£1.69 £1.41
37	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
38	MO337774041/0 Available to backorder	Wire Bracket	£7.46 £6.22
39	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
40	MO337506741/0 Available to backorder	Drive Pedal	£33.79 £28.16
41	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
43	MO112154330/0 In stock	Nut	£1.55 £1.29
44	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
51	MO9997-0811-02 Available to backorder	Screw	£3.24 £2.70
52	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
55	MO112794988/0 Available to backorder	Screw	£6.20 £5.17
56	MO1137-0959-01 Available to backorder	Pedal	£4.37 £3.64
58	MO1137-0992-01 Available to backorder	Brake Cabel	£39.42 £32.85
61	MO1137-0825-01 Available to backorder	Lever	£8.45 £7.04
63	MO1137-0872-01 Available to backorder	Spacer	£1.55 £1.29
64	MO387318287/0 Available to backorder	Lever	£21.54 £17.95
65	MO1137-0952-01 Available to backorder	Knob	£1.55 £1.29
67	MO1137-1092-01 Available to backorder	Spring	£1.82 £1.52
68	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
