PARK 120 - 2016-2022 - 2F5820241/S16 - Stiga Front Mower Assembly Parts Diagram

Description

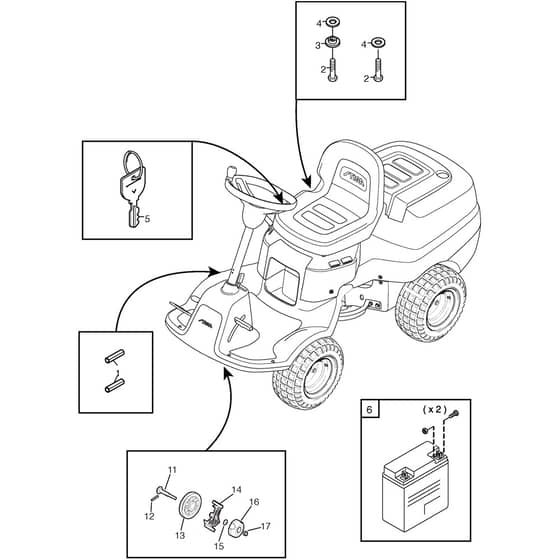

Stiga PARK 120 Parts Diagram

Product Name - PARK 120

Model Year - 2016-2022

Model Type - V 302

Art.N - 2F5820241/S16

Engine Model -

	Part No.	Details
1	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
2	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
3	MO1134-4185-01 Available to backorder	Flange Washer	£6.46 £5.38
5	MO1134-4734-01 In stock	Ignition Key	£17.33 £14.44
6	MO1134-6113-01 Available to backorder	Screw	£12.80 £10.67
11	MO137510307/0 Available to backorder	Pin	£9.42 £7.85
12	MO112642450/0 Available to backorder	Pin	£1.33 £1.11
13	MO1134-0072-02 Available to backorder	Steering Pulley	£7.39 £6.16
14	MO337774098/0 Available to backorder	Bracket	£4.64 £3.87
15	MO112523060/0 In stock	Washer	£1.55 £1.29
16	MO122399900/0 In stock	Black Knob	£1.55 £1.29
17	MO112155000/0 In stock	Nut	£1.55 £1.29
