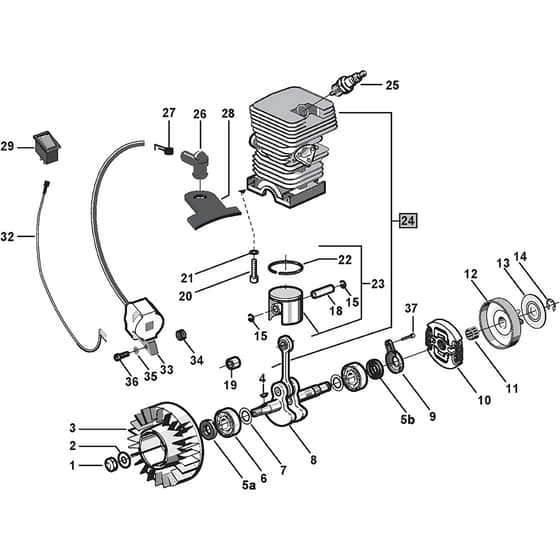

P 390 - 2004 - 122716007 - Stiga Chainsaw Crankshaft and Cylinder Diagram

Description

Stiga P 390 Parts Diagram

Product Name - P 390

Model Year - 2004

Model Type - P 390

Art.N - 122716007

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO3L4541210/1 Available to backorder	Flywheel	£52.52 £43.77
4	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
5	MO3121071 Available to backorder	Seal Ring 5a	£4.78 £3.98
6	MO3112030 Available to backorder	Ball Bearing	£14.92 £12.43
8	MO383020003/0 Available to backorder	Crankshaft	£78.84 £65.70
11	MO3114190 Available to backorder	Needle Bearing	£7.67 £6.39
12	MO4121208 Available to backorder	Clutch Drum	£17.17 £14.31
14	MO112000955/0 Available to backorder	Circlip	£1.33 £1.11
15	MO3356050 Available to backorder	Circlip Ring	£1.40 £1.17
18	MO3158260 Available to backorder	Piston Pin	£6.64 £5.53
19	MO3116100 Available to backorder	Needle Bearing	£7.13 £5.94
20	MO2135030 Available to backorder	Screw	£1.40 £1.17
21	MO2330020 Available to backorder	Washer	£1.40 £1.17
22	MO3123220 Available to backorder	Piston Ring Ø 39	£4.97 £4.14
23	MO3L8541360/1 Available to backorder	Piston Assy	£99.53 £82.94
24	MO3L8541370/1 Available to backorder	Cylinder - Piston Ass'Y	£246.35 £205.29
25	9494 In stock	Spark Plug	£3.72 £3.10
26	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
27	MO3657050 Available to backorder	Spark Plug Spring	£3.94 £3.28
29	MO118800202/0 Available to backorder	Stop Switch	£1.82 £1.52
33	MO3L3211350/1 Available to backorder	Electronic Coil	£114.29 £95.24
34	MO3654480 Available to backorder	Spring	£1.33 £1.11
