Billy Goat OS552H - OS552H Power Rake and Overseeder Main (5) Diagram

Name: Billy Goat OS552H - OS552H Power Rake and Overseeder Main (5) Diagram
SKU: os552h_os552h_power_rake_and_overseeder_main_5_-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat OS552H - OS552H Power Rake and Overseeder Main (5) Diagram

Description

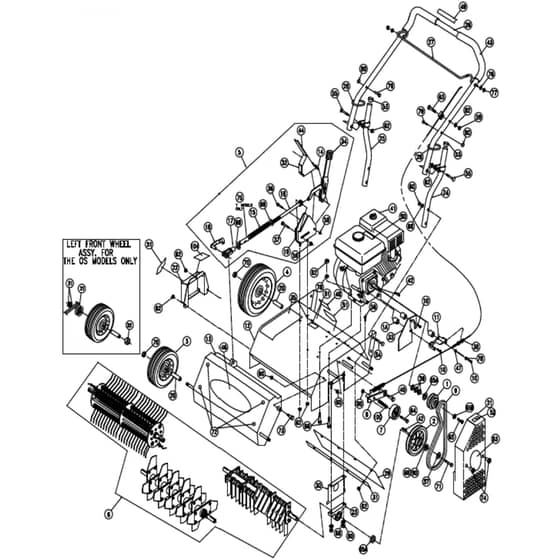

OS552H Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG350101 Available to backorder	Pulley 3" Od	£105.50 £87.92
2	BG350102 Available to backorder	Pulley 6 5" Od X ¾"	£130.96 £109.13
3	BG350103 Available to backorder	Wheel 8 0" X 5/8" Bearing	£76.10 £63.42
4	BG350104 Available to backorder	Wheel 10 0" X 5/8" Bearing	£69.88 £58.23
7	BG350114 Available to backorder	Pulley Idler 2 75"	£39.68 £33.07
9	BG350116 Available to backorder	Belt 5L X 36	£68.40 £57.00
17	BG350127 Available to backorder	Yoke ½ - 20	£28.24 £23.53
18	BG350128 Available to backorder	Pin Yoke ½"	£15.72 £13.10
20	BG350130 Available to backorder	Spacer Spanner Wheel Pr500	£8.72 £7.27
21	BG350384-S Available to backorder	Guard Belt Wa W/ Label	£111.58 £92.98
23	BG350133 Available to backorder	Bearing ¾" Cast Pillow Block	£44.10 £36.75
24	BG350134 Available to backorder	Handle Lower Lh Wa	£48.95 £40.79
25	BG350135 Available to backorder	Handle Lower Rh Wa	£48.95 £40.79
26	BG350375 Available to backorder	Handle Upper Pr500	£94.92 £79.10
28	BG350138 Available to backorder	Loop Folding Handle	£11.59 £9.66
29	BG350167 Available to backorder	Deflector Rubber	£30.20 £25.17
30	BG350168 Available to backorder	Shield Bearing	£39.20 £32.67
31	BG350171 Available to backorder	Bar Clamp Deflector	£8.05 £6.71
38	BG350408-S In stock	Cable Clutch Pr	£45.78 £38.15
39	BG520034 Available to backorder	Bushing Caster Yoke Spacer	£5.32 £4.43
40	BG500114 Available to backorder	Bolt Shoulder 1/2" X 1"	£8.72 £7.27
42	BG9201078 Available to backorder	Key 3/16" X 1"	£3.12 £2.60
43	BG400570 Available to backorder	Grip 1" X 13"	£6.74 £5.62
47	BG350301 Available to backorder	Finger Belt Wire	£7.88 £6.57
48	BG810736 Available to backorder	Label Danger Thrown Object	£3.71 £3.09
51	BG400424 Available to backorder	Label Warning	£3.71 £3.09
52	BG900327 Available to backorder	Label Danger Guard	£3.71 £3.09
53	BG890132 Available to backorder	Plug Cap 1" Rd	£0.97 £0.81
55	BG8024043 Available to backorder	Bolt Carraige 5/16-18 X 1 3/4	£0.97 £0.81
56	BG8024039 Available to backorder	Bolt Carriage 5/16 -18 X 3/4	£0.97 £0.81
57	BG430298 Available to backorder	Washer Lock 5/16" Tw Tooth	£1.56 £1.30
58	BG8164005 Available to backorder	Nut Lock #10-24	£0.97 £0.81
59	BG8160001 Available to backorder	Nut Lock 1/4-20	£0.97 £0.81
60	BG8160003 Available to backorder	Nut Lock 3/8-16	£1.20 £1.00
62	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
63	BG8041008 Available to backorder	Screwcap 1/4-20 X 1 1/2	£1.20 £1.00
65	BG8172015 Available to backorder	Washer 3/4 Sae	£0.78 £0.65
68	BG8171004 Available to backorder	Washer 3/8 Flat Cut	£1.20 £1.00
69	BG8172011 In stock	Washer 1/2 Sae Zp	Was £1.10 £0.92 Special Price £0.73 £0.61
70	BG8161044 Available to backorder	Nut Lock 1/2" - 13 Thin Hgt	£0.97 £0.81
73	BG520031 Available to backorder	Bolt Shoulder 1/2" X 2"	£6.43 £5.36
74	BG791080 Available to backorder	Flange Screw 0375 -16 X 075	£1.28 £1.07
76	BG8172009 Available to backorder	Washer 3/8 Sae	£1.28 £1.07
78	BG8171002 Available to backorder	Washer 1/4 Flat Cut	£0.78 £0.65
82	BG8172007 Available to backorder	Washer 1/4 Sae	£0.78 £0.65
100	BG8171003 Available to backorder	Washer Flat 5/16"	£0.78 £0.65
