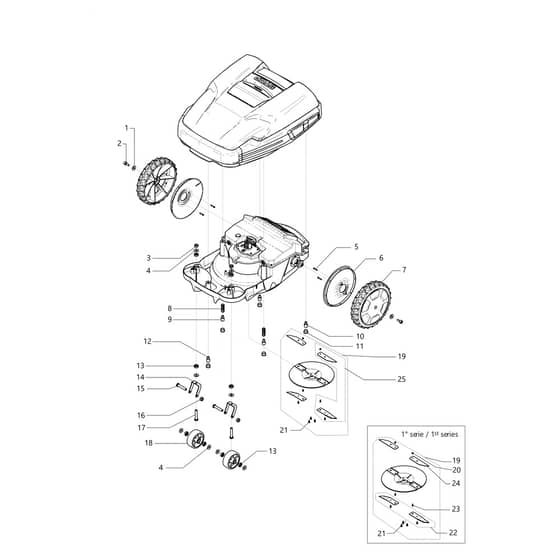

ORION 1200 - Oleo-Mac Robot Mower Cutting plate assembly Diagram

Name: ORION 1200 - Oleo-Mac Robot Mower Cutting plate assembly Diagram
SKU: orion_1200_cutting_plate_assembly-group
Price: 0.5 GBP
Availability: InStock

Part No. orion_1200_cutting_plate_assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ORION 1200 - Oleo-Mac Robot Mower Cutting plate assembly Diagram

Description

Oleo-Mac ORION 1200 Parts Diagram

	Part No.	Details
1	AK701493 In stock	Washer	£0.89 £0.74
2	AK705937 Available to backorder	Screw	£0.84 £0.70
3	AK704536 Out of stock	Nut	£1.13 £0.94
4	AK700137 Available to backorder	Washer	£1.08 £0.90
5	AK510281 Available to backorder	Screw	£0.79 £0.66
6	AK470895 Available to backorder	Cover	£2.59 £2.16
7	AK47071834 Available to backorder	Driving Wheel	£17.40 £14.50
8	AK474686 Available to backorder	Spring	£1.78 £1.48
9	AK474565 Available to backorder	Sleeve	£5.52 £4.60
10	AK474676 Available to backorder	Sleeve	£4.56 £3.80
11	AK474116 Available to backorder	Cap	£1.03 £0.86
12	AK474097 Available to backorder	Sleeve	£5.52 £4.60
13	AK474996 Available to backorder	Bearing	£5.64 £4.70
14	AK47453130 Available to backorder	Fork	£6.00 £5.00
15	AK700934 Available to backorder	Pin	£1.42 £1.18
16	AK700432 Available to backorder	Nut	£0.86 £0.72
17	AK700493 Available to backorder	Screw	£1.42 £1.18
18	AK47073401 Available to backorder	Front Wheel	£5.28 £4.40
19	AK127402 Available to backorder	Double Blade Kit+Cutter Support	£92.40 £77.00
20	AK705960 Available to backorder	Nut	£0.82 £0.68
21	AK705958 Available to backorder	Screw	£0.84 £0.70
22	AK119573 Available to backorder	Blades Kit	£111.48 £92.90
23	AK746001 Available to backorder	Screw	£0.60 £0.50
