ORION 1200 - Oleo-Mac Robot Mower Charging station Diagram

Part No. orion_1200_charging_station-group
ORION 1200 - Oleo-Mac Robot Mower Charging station Diagram
ORION 1200 - Oleo-Mac Robot Mower Charging station Diagram

Description

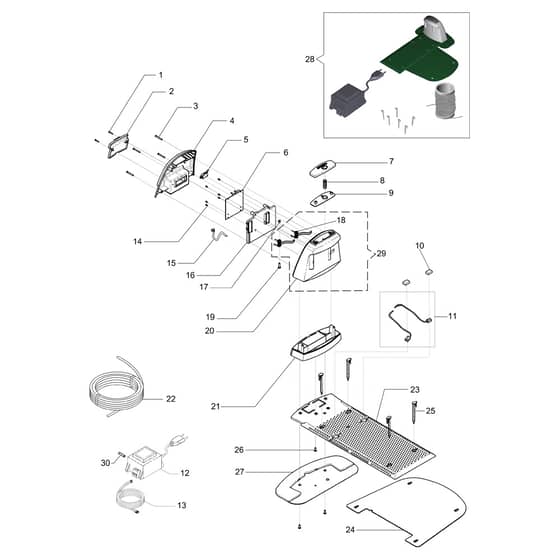

Oleo-Mac ORION 1200 Parts Diagram

Ref. Img. Part No. Details
  1 Screw
Screw
AK510759
Available to backorder
Screw
£1.74 £1.45

  3 Screw
Screw
AK518483
Available to backorder
Screw
£1.01 £0.84

  4 Cover
Cover
AK47093734
Available to backorder
Cover
£13.68 £11.40

  5 Micro-Switch
Micro-Switch
AK474407
Available to backorder
Micro-Switch
£20.16 £16.80

  6 Electric Board
Electric Board
AK470921
Available to backorder
Electric Board
£129.72 £108.10

  7 Button
Button
AK47093801
Available to backorder
Button
£5.52 £4.60

  8 Spring
Spring
AK474118
Available to backorder
Spring
£3.14 £2.62

  9 Spring Holder
Spring Holder
AK47408201
Available to backorder
Spring Holder
£2.03 £1.69

  10 Cap
Cap
AK47484301
Available to backorder
Cap
£1.66 £1.38

  11 Cables Set
Cables Set
AK454765
Available to backorder
Cables Set
£8.04 £6.70

  12 Transformer
Transformer
AK470922
Available to backorder
Transformer
£110.16 £91.80

  13 Wire
Wire
AK441638
Available to backorder
Wire
£31.08 £25.90

  14 Screw
Screw
AK453959
Available to backorder
Screw
£0.84 £0.70

  15 Wiring
Wiring
AK474416
Available to backorder
Wiring
£14.76 £12.30

  16 Card Support
Card Support
AK47087801
Available to backorder
Card Support
£11.28 £9.40

  17 Nut
Nut
AK701441
Available to backorder
Nut
£0.84 £0.70

  18 Spring Contact SN 6513161304
Spring Contact SN 6513161304
AK440338
Available to backorder
Spring Contact SN 6513161304
£7.44 £6.20

  19 Screw
Screw
AK705959
Available to backorder
Screw
£1.63 £1.36

  21 Base
Base
AK47408134
Available to backorder
Base
£14.52 £12.10

  22 Perimeter Wire
Perimeter Wire
AK119462
Available to backorder
Perimeter Wire
£88.32 £73.60

  23 Footrest Pad
Footrest Pad
AK47087913
Available to backorder
Footrest Pad
£32.16 £26.80

  26 Screw
Screw
AK543554
Available to backorder
Screw
£1.42 £1.18

  27 Plate
Plate
AK47456913
Available to backorder
Plate
£10.56 £8.80

  28 Compl. Charging Station
Compl. Charging Station
AK119627
Available to backorder
Compl. Charging Station
£324.42 £270.35

  29 Housing Set SN 6513161304
Housing Set SN 6513161304
AK45548634
Available to backorder
Housing Set SN 6513161304
£76.20 £63.50

  30 Fuse
Fuse
AK455164
Available to backorder
Fuse
£3.72 £3.10


Description

Oleo-Mac ORION 1200 Parts Diagram
