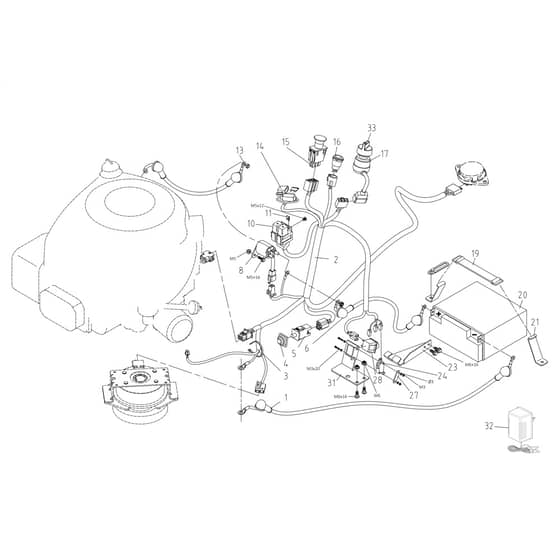

OM 99L/14.5 K M - 2024 - Oleo-Mac Ride On Mower Electrical Parts Diagram

Description

Oleo-Mac OM 99L/14.5 K M Parts Diagram

Model Year - 2024

	Part No.	Details
1	EFTS000314R Available to backorder	Cable	£5.28 £4.40
3	EFTS000317R Available to backorder	Band	£1.25 £1.04
3	EFTS000316R Available to backorder	Band	£1.18 £0.98
4	EFTS000318R Available to backorder	Switch Protection	£2.70 £2.25
5	EFTS000032R Available to backorder	Switch	£14.70 £12.25
6	EFTS000319R Available to backorder	Cable	£10.08 £8.40
8	EFTS000033R Available to backorder	Solenoid	£5.88 £4.90
11	EFTS000323R Available to backorder	Clamp	£0.48 £0.40
13	EFTS000324R Available to backorder	Wire	£9.72 £8.10
14	EFTS000325R Available to backorder	Fuse	£1.27 £1.06
15	EFTS000034R Available to backorder	Switch	£9.84 £8.20
16	EFTS000326R Available to backorder	Switch	£6.96 £5.80
17	EFTS000035R In stock	Shoe	£8.52 £7.10
19	EFTS000332R Available to backorder	Belt	£2.32 £1.93
20	EFTS000038R Available to backorder	Battery	£70.92 £59.10
21	EFTS000333R Available to backorder	Bracket	£1.66 £1.38
23	EFTS000336R Available to backorder	Control Lever	£2.90 £2.42
24	EFTS000331R Available to backorder	Switch	£2.53 £2.11
27	EFTS000337R Available to backorder	Bracket	£0.77 £0.64
28	EFTS000037R Available to backorder	Micro-Switch	£2.00 £1.67
31	EF68050054 Available to backorder	Steel Support	£3.23 £2.69
32	EF68130481 Available to backorder	Battery Charger	£39.84 £33.20
33	EFTS000412R In stock	Starting Key	£5.47 £4.56
