OM 98L/14.5 K H - 2022 - Oleo-Mac Ride On Mower Guards Diagram

Description

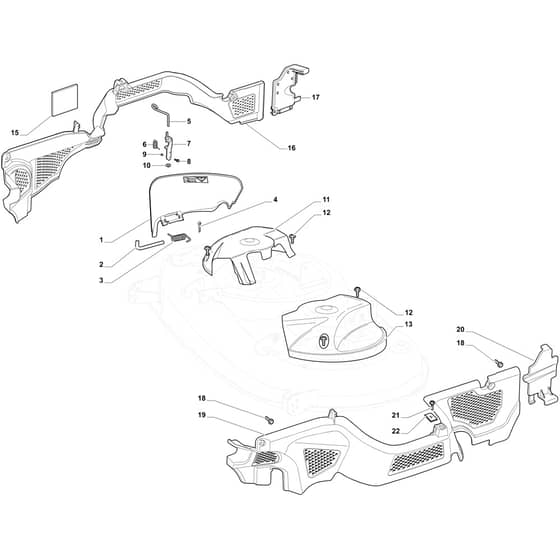

Oleo-Mac OM 98L/14.5 K H Parts Diagram

Model Year - 2022

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325600077/3 In stock	Guard	£18.43 £15.36
2	MO125510073/0 Available to backorder	Pin	£7.67 £6.39
3	MO125430242/1 In stock	Spring	£3.38 £2.82
4	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
5	MO125318355/0 Available to backorder	Deflector	£6.05 £5.04
6	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
7	MO325774719/0 Available to backorder	Clamp	£6.20 £5.17
8	MO112815202/0 Available to backorder	Screw	£1.37 £1.14
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112604899/0 In stock	Ring	£1.55 £1.29
11	MO325600078/0 Available to backorder	Cover	£9.43 £7.86
12	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
13	MO325600079/0 Available to backorder	Cover	£11.12 £9.27
15	MO325600084/0 Available to backorder	Guard	£1.82 £1.52
16	MO325060154/0 Available to backorder	Cover	£32.38 £26.98
17	MO325600082/0 Available to backorder	Guard	£3.67 £3.06
19	MO325060155/0 Available to backorder	Cover	£32.38 £26.98
20	MO325600083/0 Available to backorder	Guard	£3.67 £3.06
21	MO125943011/0 Available to backorder	Screw	£9.50 £7.92
22	MO112437506/0 Available to backorder	Plate	£2.53 £2.11
