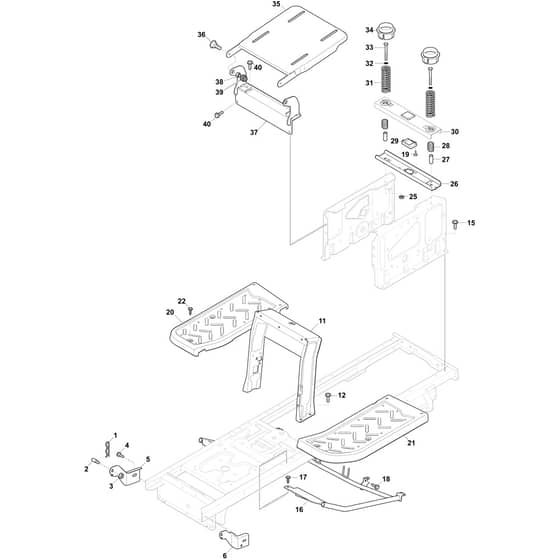

OM 98L/12.5 K M - 2023 - Oleo-Mac Ride On Mower Frame Diagram

Name: OM 98L/12.5 K M - 2023 - Oleo-Mac Ride On Mower Frame Diagram
SKU: om_98l_12_5_k_m_2023_frame-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 98L/12.5 K M - 2023 - Oleo-Mac Ride On Mower Frame Diagram

Description

Oleo-Mac OM 98L/12.5 K M Parts Diagram

Model Year - 2023

Be the first to review this product

0 product questions

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
2	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
5	MO325547225/0 Available to backorder	Plate	£6.34 £5.28
6	MO325547227/0 Available to backorder	Plate	£6.76 £5.63
11	MO382785169/1 Available to backorder	Column Support	£57.71 £48.09
16	MO382785197/1 Available to backorder	Footboard Support	£61.80 £51.50
19	MO112728697/0 In stock	Screw	£1.55 £1.29
20	MO325500050/0 Available to backorder	Footrest Pad	£23.52 £19.60
21	MO325500051/1 Available to backorder	Footrest Pad	£24.44 £20.37
22	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
25	MO112293201/0 In stock	Nut	£1.69 £1.41
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
29	MO325785379/1 Available to backorder	Support	£1.55 £1.29
30	MO325820111/1 Available to backorder	Support	£10.00 £8.33
31	MO125430264/1 Available to backorder	Spring	£9.37 £7.81
32	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO325600148/0 Available to backorder	Cover	£1.40 £1.17
35	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
36	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
37	MO382820151/2 Available to backorder	Seat Support	£24.07 £20.06
38	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
39	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
40	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
