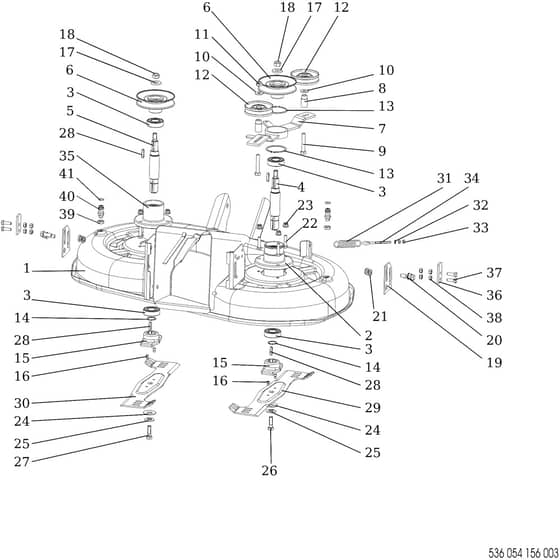

OM 92/16KH (K1600AVD) - 2021 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram

Name: OM 92/16KH (K1600AVD) - 2021 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram
SKU: om_92_16kh_k1600avd_2021_mowing_deck_1_2_-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 92/16KH (K1600AVD) - 2021 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram

Description

Oleo-Mac OM 92/16KH (K1600AVD) Parts Diagram

Model Year - 2021

Be the first to review this product

0 product questions

	Part No.	Details
3	EFSGN324162099 Available to backorder	Bearing	£13.90 £11.58
4	EFSGS532038128403 Available to backorder	Shaft	£164.90 £137.42
5	EFSGS532038128413 Available to backorder	Shaft	£153.90 £128.25
6	EFSGN532151209 Available to backorder	Pulley	£83.48 £69.57
11	EFSGN311129502 Available to backorder	Nut	£0.90 £0.75
12	EFsgn532150784 Available to backorder	Compensator	£22.54 £18.78
14	EFSGN311733014 Available to backorder	Retainer Washer	£1.84 £1.53
15	EFSGS532098212403 Available to backorder	Flange	£56.54 £47.12
16	EFSGS532093117363 In stock	Pin	£1.44 £1.20
17	EFSGS532092207273 Available to backorder	Washer	£0.96 £0.80
18	EFSGN311129505 Available to backorder	Nut	£0.96 £0.80
20	EFSGN309578529 Available to backorder	Screw	£5.44 £4.53
21	EFSGN311129522 Available to backorder	Nut	£1.84 £1.53
22	EFSGN309503543 Available to backorder	Screw	£0.90 £0.75
23	EFSGN532150290 Available to backorder	Nut	£0.96 £0.80
24	EFSGN311219503 Available to backorder	Washer	£5.84 £4.87
25	EFSGS532092207493 Available to backorder	Washer	£4.31 £3.59
26	EFSGN309599008 Available to backorder	Screw	£9.54 £7.95
27	EFSGN309599017 Available to backorder	Screw	£5.94 £4.95
28	EFSGN311726091 Available to backorder	Spring	£0.90 £0.75
29	EFSGS532050422843 Available to backorder	Blade	£55.68 £46.40
30	EFSGS532050422833 Available to backorder	Blade	£55.68 £46.40
31	EFSGN315231234 Available to backorder	Spring	£7.70 £6.42
32	EFSG311210502 Available to backorder	Washer	£0.90 £0.75
33	EFSGN311150504 Available to backorder	Nut	£0.56 £0.47
34	EFSGN309578523 Available to backorder	Screw	£3.88 £3.23
37	EFSG947309503512 Available to backorder	Screw	£0.90 £0.75
38	EFSGN311129501 Available to backorder	Nut	£0.90 £0.75
39	EFSGN311120511 Available to backorder	Nut	£0.90 £0.75
40	EFSGN532150533 Available to backorder	Quick Fastener	£15.62 £13.02
41	EFSGN273111057 Available to backorder	Ring	£0.90 £0.75
