OM 84/14.5 K H - 2019 - Oleo-Mac Ride On Mower Optional on request Diagram

Name: OM 84/14.5 K H - 2019 - Oleo-Mac Ride On Mower Optional on request Diagram
SKU: om_84_14_5_k_m_2019_optional_on_request-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 84/14.5 K H - 2019 - Oleo-Mac Ride On Mower Optional on request Diagram

Description

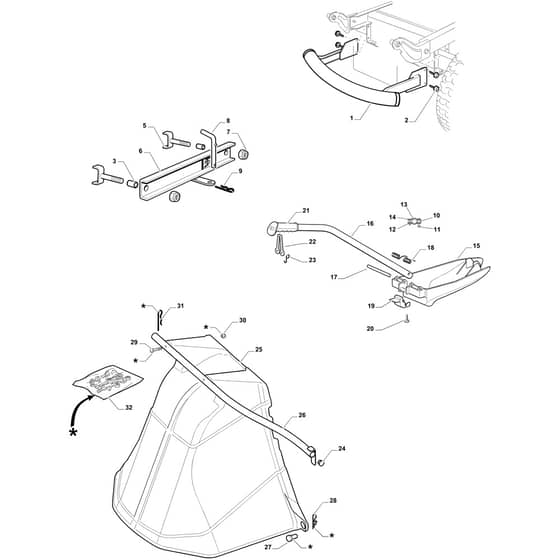

Oleo-Mac OM 84/14.5 K M Parts Diagram

Model Year - 2019

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382869038/0 Available to backorder	Guard	£39.42 £32.85
2	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
3	MO125160108/0 Available to backorder	Spacer	£2.81 £2.34
5	MO382650211/0 Available to backorder	Reinforcement	£5.06 £4.22
6	MO382033119/0 Available to backorder	Bar	£38.00 £31.67
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO125510021/1 In stock	Pin	£11.12 £9.27
9	MO124487999/0 Available to backorder	Cotter Pin	£1.82 £1.52
10	MO122170600/0 Available to backorder	Spacer	£1.82 £1.52
11	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
14	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
15	MO325140104/1 Available to backorder	Deflector	£23.23 £19.36
16	MO325394021/0 Available to backorder	Handle	£17.04 £14.20
17	MO125510077/0 Available to backorder	Pin	£3.38 £2.82
18	MO125430245/0 Available to backorder	Spring	£3.52 £2.93
19	MO325547320/0 Available to backorder	Plate	£3.67 £3.06
20	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
21	MO325280000/1 Available to backorder	Knob	£3.10 £2.58
22	MO125840011/1 In stock	Tie Rod	£7.19 £5.99
23	MO125253004/0 Available to backorder	Hook	£1.55 £1.29
24	MO118566112/0 Available to backorder	Cap	£1.55 £1.29
25	MO325600093/1 Available to backorder	Guard	£67.44 £56.20
26	MO382869044/0 Available to backorder	Tube	£19.42 £16.18
27	MO125510022/1 Available to backorder	Pin	£3.10 £2.58
28	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
29	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
32	MO382180028/0 Available to backorder	Screws Kit	£15.78 £13.15
