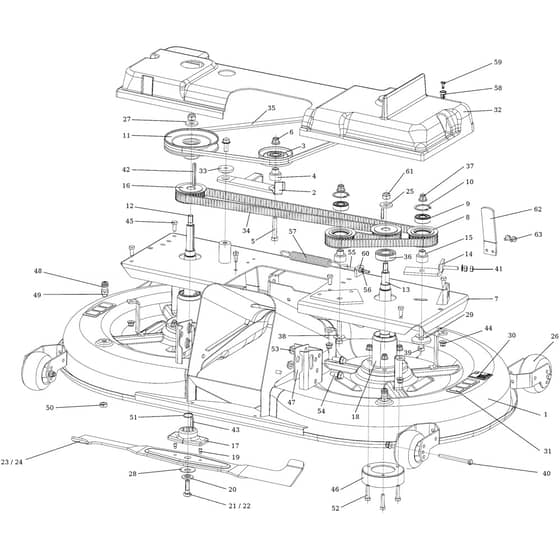

OM 124/24 KH (K2400AVD V-TWIN-EURO5) - 2022 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram

Name: OM 124/24 KH (K2400AVD V-TWIN-EURO5) - 2022 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram
SKU: om_124_24_kh_k2400avd_v_twin_euro5_2022_mowing_deck_1_2_-group
Price: 0.64 GBP
Availability: InStock

Part No. om_124_24_kh_k2400avd_v_twin_euro5_2022_mowing_deck_1_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 124/24 KH (K2400AVD V-TWIN-EURO5) - 2022 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram

Description

Oleo-Mac OM 124/24 KH (K2400AVD V-TWIN-EURO5) Parts Diagram

Model Year - 2022

	Part No.	Details
2	EFSGS532913424393 Available to backorder	Support	£57.24 £47.70
3	EFsgn532150784 Available to backorder	Compensator	£23.28 £19.40
8	EFSGN532150836 Available to backorder	Pulley	£67.44 £56.20
9	EFSGN324162098 Available to backorder	Bearing	£14.88 £12.40
10	EFSGN311733079 Available to backorder	Retainer Washer	£0.77 £0.64
11	EFSGN532150165 Available to backorder	Pulley	£79.92 £66.60
12	EFSGS532038128033 Available to backorder	Shaft	£58.92 £49.10
13	EFSGS532038128023 Available to backorder	Shaft	£104.76 £87.30
15	EFSGS532094212013 Available to backorder	Spacer	£15.60 £13.00
16	EFSGN532150860 In stock	Pulley	£53.28 £44.40
17	EFSGS532098212403 Available to backorder	Flange	£60.53 £50.44
18	EFSGS532038523833 Available to backorder	Hub	£103.68 £86.40
19	EFSGS532093117363 In stock	Pin	£1.66 £1.38
20	EFSGS532092207493 Available to backorder	Washer	£3.84 £3.20
21	EFSGN309599008 Available to backorder	Screw	£9.00 £7.50
22	EFSGN309599017 Available to backorder	Screw	£5.64 £4.70
23	EFSGS532050422253 Available to backorder	Blade Left	£115.32 £96.10
24	EFSGS532050422263 Available to backorder	Blade Right	£115.32 £96.10
26	EFSGN532940128 In stock	Cutting Wheel	£18.16 £15.13
27	EFSGS532092207273 Available to backorder	Washer	£1.08 £0.90
28	EFSGN311219503 Available to backorder	Washer	£5.64 £4.70
31	EFSGN283292121 Available to backorder	Label	£3.01 £2.51
33	EFSGS532092212293 Available to backorder	Washer	£13.56 £11.30
34	EFSGN272211011 Available to backorder	Belt	£154.08 £128.40
35	EFSGN272731248 Available to backorder	V Belt	£68.16 £56.80
36	EFSGN324162099 Available to backorder	Bearing	£14.40 £12.00
37	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
40	EFSGN309501567 Available to backorder	Screw	£2.00 £1.67
42	EFSGN311726086 Available to backorder	Spring	£3.01 £2.51
43	EFSGN311726091 Available to backorder	Spring	£1.08 £0.90
44	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
45	EFSGN309503518 Available to backorder	Screw	£1.08 £0.90
48	EFSGN532150533 Available to backorder	Quick Fastener	£16.20 £13.50
49	EFSGN273111057 Available to backorder	Ring	£1.08 £0.90
50	EFSGN311120511 Available to backorder	Nut	£1.08 £0.90
51	EFSGN311733014 Available to backorder	Retainer Washer	£2.00 £1.67
53	EFSGN311129522 Available to backorder	Nut	£2.00 £1.67
54	EFSGN309578529 Available to backorder	Screw	£5.64 £4.70
55	EFSGN309578523 Available to backorder	Screw	£3.96 £3.30
57	EFSGN315231193 Available to backorder	Spring	£10.92 £9.10
58	EFSGN532150903 In stock	Bushing	£3.13 £2.61
59	EFSGN532150904 In stock	Stud	£3.13 £2.61
60	EFSGN311212517 Available to backorder	Washer	£1.08 £0.90
61	EFSGN311129505 Available to backorder	Nut	£1.08 £0.90
