OM 124/24 KH (K2400AVD V-TWIN) - 2017 - Oleo-Mac Ride On Mower Front axle Diagram

Name: OM 124/24 KH (K2400AVD V-TWIN) - 2017 - Oleo-Mac Ride On Mower Front axle Diagram
SKU: om_124_24_kh_k2400avd_v_twin_2017_front_axle-group
Price: 0.46 GBP
Availability: InStock

Part No. om_124_24_kh_k2400avd_v_twin_2017_front_axle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 124/24 KH (K2400AVD V-TWIN) - 2017 - Oleo-Mac Ride On Mower Front axle Diagram

Description

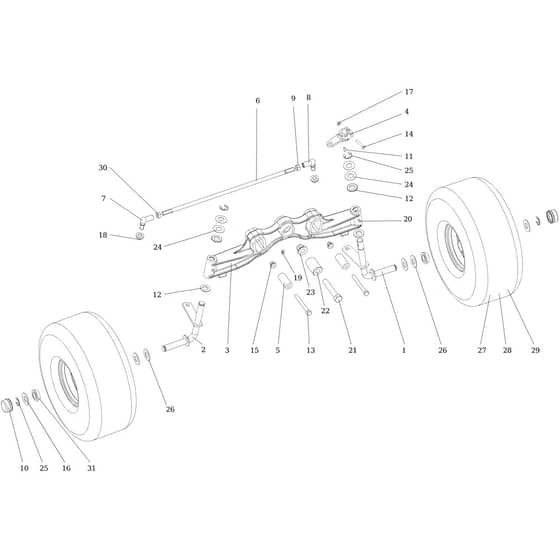

Oleo-Mac OM 124/24 KH (K2400AVD V-TWIN) Parts Diagram

Model Year - 2017

	Part No.	Details
1	EFSGS532916432143 Available to backorder	Pin	£45.36 £37.80
2	EFSGS532916432153 Available to backorder	Pin	£45.84 £38.20
4	EFSGS532080503603 Available to backorder	Lever	£62.52 £52.10
6	EFSGN532151336 Available to backorder	Connecting Rod	£14.16 £11.80
7	EFSGN442073020 Available to backorder	Angle	£21.48 £17.90
8	EFSGN442073019 Available to backorder	Angle	£22.68 £18.90
10	EFSGN532150915 Available to backorder	Cover	£9.00 £7.50
11	EFSGN311728003 Available to backorder	Wrench	£3.01 £2.51
13	EFSGN309501527 Available to backorder	Cover	£2.00 £1.67
15	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
17	EFSGN311129513 Available to backorder	Self-Locking Nut	£1.08 £0.90
18	EFSGN311129521 Available to backorder	Nut	£2.77 £2.31
20	EFSGN425111004 Available to backorder	Nipple	£2.00 £1.67
22	EFSGS532093202793 Available to backorder	Pin	£25.68 £21.40
25	EFSGN311732023 Available to backorder	Snap Ring	£0.55 £0.46
27	EFSGN532940164 Available to backorder	Front Wheel	£212.52 £177.10
28	EFSGN325111024 Available to backorder	Wheel Cover	£103.80 £86.50
30	EFSGN311120504 Available to backorder	Hex Nut	£0.96 £0.80
31	EFSGN324196019 Available to backorder	Bearing	£20.40 £17.00
