OM 124/22 HP - Oleo-Mac Ride On Mower Clutch Diagram

Description

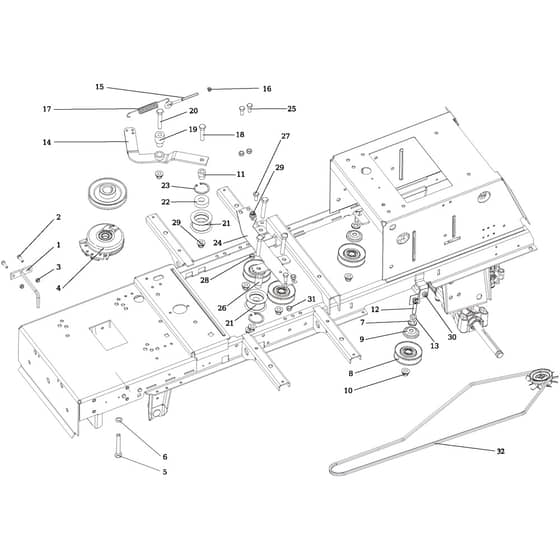

Oleo-Mac OM 124/22 HP Parts Diagram

	Part No.	Details
2	EFSGN309503548 Available to backorder	Screw	£0.90 £0.75
4	EFSGN532151196 Available to backorder	Clutch	£336.00 £280.00
8	EFSGN532150824 Available to backorder	Pulley	£23.54 £19.62
9	EFSGN532151119 Available to backorder	Guard	£4.46 £3.72
10	EFSGN311129523 Available to backorder	Nut	£0.72 £0.60
11	EFSGS532094214473 In stock	Bushing	£8.08 £6.73
13	EFSGN311210505 Available to backorder	Washer	£0.90 £0.75
15	EFSGN309578523 Available to backorder	Screw	£3.88 £3.23
16	EFSGN311129513 Available to backorder	Self-Locking Nut	£0.90 £0.75
21	EFSGN532151361 In stock	Pulley	£31.90 £26.58
22	EFSGN324162098 Available to backorder	Bearing	£14.36 £11.97
23	EFSGN311733079 Available to backorder	Retainer Washer	£0.77 £0.64
25	EFSGN309503518 Available to backorder	Screw	£0.90 £0.75
29	EFSGN532150290 Available to backorder	Nut	£0.96 £0.80
31	EFSGN311129501 Available to backorder	Nut	£0.90 £0.75
32	EFSGN272731256 Available to backorder	Belt	£89.28 £74.40
