OM 124/22 HP - 2024 - Oleo-Mac Ride On Mower Grass collector Diagram

Description

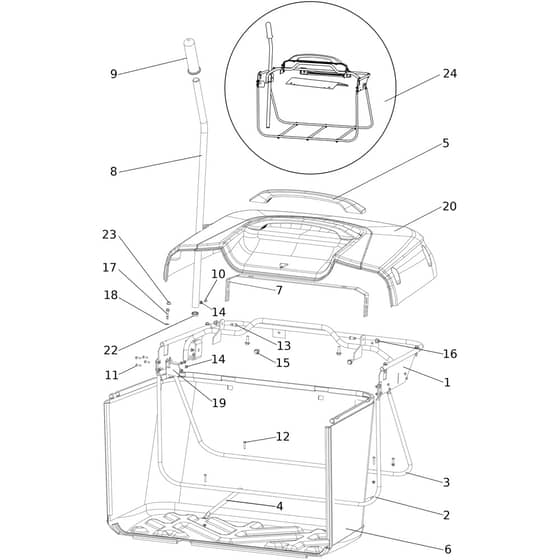

Oleo-Mac OM 124/22 HP Parts Diagram

Model Year - 2024

	Part No.	Details
2	EFSGS532074442263 Available to backorder	Pipe	£45.60 £38.00
3	EFSGS532074442283 Available to backorder	Pipe	£56.88 £47.40
5	EFSGN532151371 Available to backorder	Handle	£51.72 £43.10
6	EFSGN532151378 Available to backorder	Grass Collector	£212.64 £177.20
8	EFSGS532074202013 Available to backorder	Lever	£62.76 £52.30
9	EFSGN532151120 Available to backorder	Handle	£7.68 £6.40
10	EFSGN309578545 Available to backorder	Screw	£0.46 £0.38
12	EFSGN309203557 Available to backorder	Screw	£1.08 £0.90
14	EFSGN311129524 Available to backorder	Nut	£0.48 £0.40
15	EFSGN309503005 Available to backorder	Screw	£2.38 £1.98
16	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
17	EFSGN309315013 Available to backorder	Screw	£1.08 £0.90
19	EFSGS532097402233 Available to backorder	Spring	£16.08 £13.40
20	EFSGN532151389 Available to backorder	Cover	£226.92 £189.10
