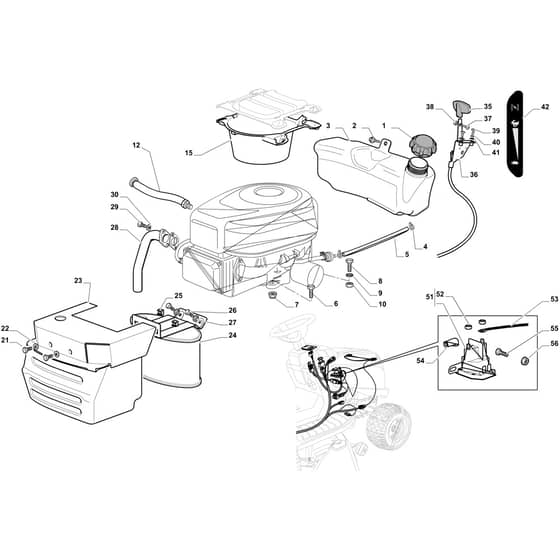

OM 108L/18.5 H - 2018 - Oleo-Mac Ride On Mower Tank, muffler and guards Diagram

Name: OM 108L/18.5 H - 2018 - Oleo-Mac Ride On Mower Tank, muffler and guards Diagram
SKU: om_108l_18_5_h_2018_tank_muffler_and_guards-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 108L/18.5 H - 2018 - Oleo-Mac Ride On Mower Tank, muffler and guards Diagram

Description

Oleo-Mac OM 108L/18.5 H Parts Diagram

Model Year - 2018

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Tank Cap	£7.96 £6.63
2	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
3	MO325735126/1 Available to backorder	Tank	£46.46 £38.72
4	MO118375051/1 Available to backorder	Band	£3.00 £2.50
5	MO325869057/0 Available to backorder	Connecting Tube 1000 mm	£20.56 £17.13
6	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
10	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
12	MO1134-5827-01 Available to backorder	Oil Line	£39.34 £32.78
15	MO325108044/1 Available to backorder	Starter Case	£11.12 £9.27
23	MO382598047/0 Available to backorder	Guard	£50.93 £42.44
24	MO182750010/0 Available to backorder	Silencer	£123.89 £103.24
25	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
26	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
28	MO118738206/0 Available to backorder	Tube	£81.66 £68.05
29	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
30	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
35	MO325394531/0 Available to backorder	Knob	£1.82 £1.52
36	MO182000216/0 In stock	Throttle	£19.50 £16.25
38	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
39	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
40	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
41	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
42	MO114363697/0 Available to backorder	Label	£1.55 £1.29
51	MO118736112/0 In stock	Starter Relay	£38.00 £31.67
52	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
53	MO125065002/0 Available to backorder	Cable	£10.49 £8.74
54	MO118564864/1 Available to backorder	Cap	£5.92 £4.93
55	MO112790781/0 In stock	Screw	£1.55 £1.29
56	MO112154510/0 In stock	Nut	£1.55 £1.29
