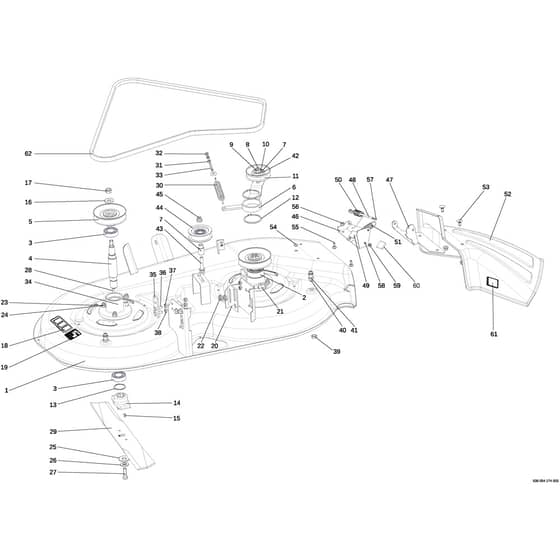

OM 107 L/16 KH (K1600AVD) - 2017 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram

Name: OM 107 L/16 KH (K1600AVD) - 2017 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram
SKU: om_107_l_16_kh_k1600avd_2017_mowing_deck_1_2_-group
Price: 0.38 GBP
Availability: InStock

Part No. om_107_l_16_kh_k1600avd_2017_mowing_deck_1_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 107 L/16 KH (K1600AVD) - 2017 - Oleo-Mac Ride On Mower Mowing deck (1/2) Diagram

Description

Oleo-Mac OM 107 L/16 KH (K1600AVD) Parts Diagram

Model Year - 2017

	Part No.	Details
3	EFSGN324162099 Available to backorder	Bearing	£14.40 £12.00
4	EFSGS532038128413 Available to backorder	Shaft	£147.72 £123.10
5	EFSGN532151209 Available to backorder	Pulley	£86.40 £72.00
10	EFSGN311129502 Available to backorder	Nut	£1.08 £0.90
11	EFsgn532150784 Available to backorder	Compensator	£23.28 £19.40
13	EFSGN311733014 Available to backorder	Retainer Washer	£2.00 £1.67
14	EFSGS532098212403 Available to backorder	Flange	£60.53 £50.44
15	EFSGS532093117363 In stock	Pin	£1.66 £1.38
16	EFSGS532092207273 Available to backorder	Washer	£1.08 £0.90
17	EFSGN311129505 Available to backorder	Nut	£1.08 £0.90
18	EFSGN283292437 Available to backorder	Label	£3.01 £2.51
19	EFSGN283292121 Available to backorder	Label	£3.01 £2.51
21	EFSGN309578529 Available to backorder	Screw	£5.64 £4.70
22	EFSGN311129522 Available to backorder	Nut	£2.00 £1.67
23	EFSGN309503543 Available to backorder	Screw	£1.08 £0.90
24	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
25	EFSGN311219503 Available to backorder	Washer	£5.64 £4.70
26	EFSGS532092207493 Available to backorder	Washer	£3.84 £3.20
27	EFSGN309599017 Available to backorder	Screw	£5.64 £4.70
28	EFSGN311726091 Available to backorder	Spring	£1.08 £0.90
29	EFSGS532050422873 Available to backorder	Blade	£66.36 £55.30
30	EFSGN315231193 Available to backorder	Spring	£10.92 £9.10
31	EFSG311210502 Available to backorder	Washer	£1.08 £0.90
32	EFSGN311150504 Available to backorder	Nut	£0.46 £0.38
33	EFSGN309578523 Available to backorder	Screw	£3.96 £3.30
36	EFSG947309503512 Available to backorder	Screw	£1.08 £0.90
37	EFSGN311129501 Available to backorder	Nut	£1.08 £0.90
39	EFSGN311120511 Available to backorder	Nut	£1.08 £0.90
40	EFSGN532150533 Available to backorder	Quick Fastener	£16.20 £13.50
41	EFSGN273111057 Available to backorder	Ring	£1.08 £0.90
44	EFSGN532150733 Available to backorder	Pulley	£23.16 £19.30
45	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
51	EFSGN315231203 Available to backorder	Spring	£2.00 £1.67
59	EFSGN311129513 Available to backorder	Self-Locking Nut	£1.08 £0.90
