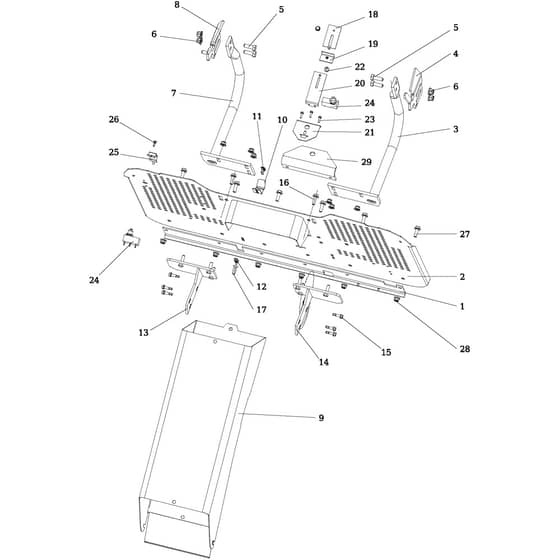

OM 106/24 KH (K2400AVD V-TWIN-EURO5) - 2019 - Oleo-Mac Ride On Mower Chute and collector assy Diagram

Name: OM 106/24 KH (K2400AVD V-TWIN-EURO5) - 2019 - Oleo-Mac Ride On Mower Chute and collector assy Diagram
SKU: om_106_24_kh_k2400avd_v_twin_euro5_2019_chute_and_collector_assy
Price: 0.38 GBP
Availability: InStock

Part No. om_106_24_kh_k2400avd_v_twin_euro5_2019_chute_and_collector_assy

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 106/24 KH (K2400AVD V-TWIN-EURO5) - 2019 - Oleo-Mac Ride On Mower Chute and collector assy Diagram

Description

Oleo-Mac OM 106/24 KH (K2400AVD V-TWIN-EURO5) Parts Diagram

Model Year - 2019

	Part No.	Details
3	EFSGS532974432523 Available to backorder	Support	£114.48 £95.40
6	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
7	EFSGS532974432513 Available to backorder	Support	£114.48 £95.40
9	EFSGS532974472723 Available to backorder	Tunnel	£224.52 £187.10
10	EFSGS532097464993 Available to backorder	Spring	£38.52 £32.10
11	EFSG309019514 Available to backorder	Screw	£1.08 £0.90
12	EFSGN311129524 Available to backorder	Nut	£0.48 £0.40
16	EFSGN309503005 Available to backorder	Screw	£2.38 £1.98
23	EFSGN309578545 Available to backorder	Screw	£0.46 £0.38
24	EFSGN345359004 Available to backorder	Switch Grassbag	£45.36 £37.80
25	EFSGS532085415813 Available to backorder	Bracket	£7.92 £6.60
26	EFSGN309578544 Available to backorder	Screw	£1.27 £1.06
27	EFSGN309578011 Available to backorder	Screw	£3.01 £2.51
28	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
