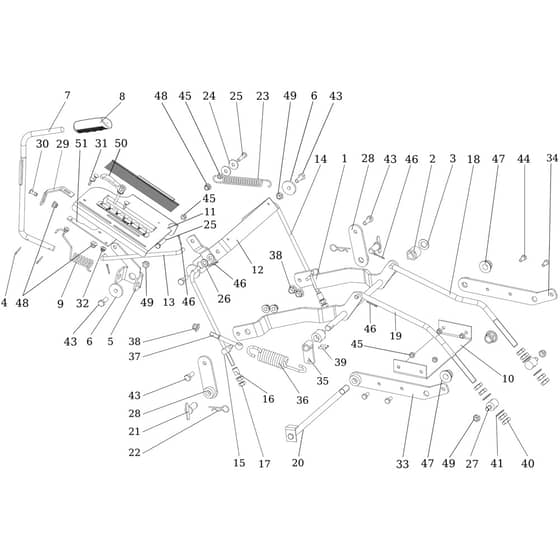

OM 106/22 H - 2024 - Oleo-Mac Ride On Mower Mowing control Diagram

Description

Oleo-Mac OM 106/22 H Parts Diagram

Model Year - 2024

	Part No.	Details
4	EFSGN311338517 Available to backorder	Pin	£1.08 £0.90
6	EFSGS532092212293 Available to backorder	Washer	£13.56 £11.30
17	EFSG311150506 Available to backorder	Nut	£1.08 £0.90
21	EFSGS532993462343 Available to backorder	Pin	£13.44 £11.20
22	EFSGN315238003 Available to backorder	Cotter Pin	£2.00 £1.67
23	EFSGN315231193 Available to backorder	Spring	£10.92 £9.10
24	EFSGN311212517 Available to backorder	Washer	£1.08 £0.90
25	EFSGN309503543 Available to backorder	Screw	£1.08 £0.90
26	EFSGN311210504 Available to backorder	Washer	£1.08 £0.90
38	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
44	EFSGN309503518 Available to backorder	Screw	£1.08 £0.90
45	EFSGN311129501 Available to backorder	Nut	£1.08 £0.90
46	EFSG311338516 Available to backorder	Pin	£1.08 £0.90
48	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
49	EFSGN311129502 Available to backorder	Nut	£1.08 £0.90
50	EFSGN532151360 Available to backorder	Lever	£63.24 £52.70
51	EFSGS532013322013 Available to backorder	Stopper	£11.04 £9.20
