OM 106/16 KH (K1600AVD) - 2023 - Oleo-Mac Ride On Mower Steering arm Diagram

Description

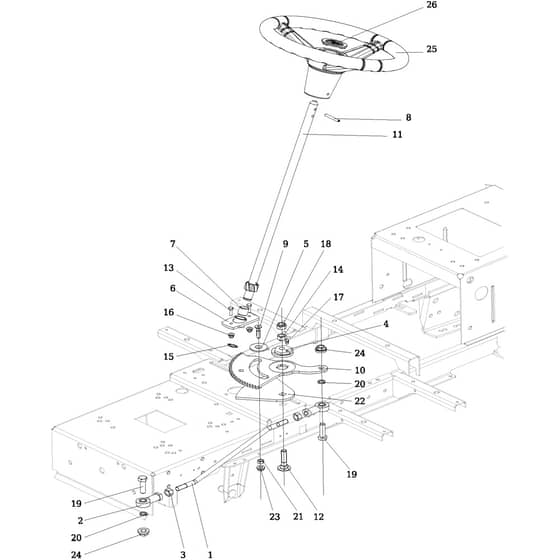

Oleo-Mac OM 106/16 KH (K1600AVD) Parts Diagram

Model Year - 2023

	Part No.	Details
1	EFSGN532151347 Available to backorder	Connecting Rod	£39.48 £32.90
2	EFSGN442073028 Available to backorder	Joint	£18.24 £15.20
3	EFSGN311150505 Available to backorder	Nut	£1.08 £0.90
4	EFSGS532080272033 Available to backorder	Cam	£16.80 £14.00
5	EFSGS532195202593 Available to backorder	Spacer	£7.68 £6.40
7	EFSGN323721002 Available to backorder	Bearing	£5.64 £4.70
8	EFSGN315238031 Available to backorder	Pin	£1.08 £0.90
9	EFSGN309578534 Available to backorder	Screw	£2.93 £2.44
10	EFSGS532033322453 Available to backorder	Piston Ring	£75.60 £63.00
11	EFSGS532930252043 Available to backorder	Sprocket	£79.68 £66.40
12	EFSGN309019522 Available to backorder	Screw	£9.00 £7.50
13	EFSGN309503548 Available to backorder	Screw	£1.08 £0.90
14	EFSGN311129505 Available to backorder	Nut	£1.08 £0.90
17	EFSGN425111004 Available to backorder	Nipple	£2.00 £1.67
23	EFSGN311129520 Available to backorder	Nut	£2.00 £1.67
24	EFSGN311129521 Available to backorder	Nut	£2.77 £2.31
