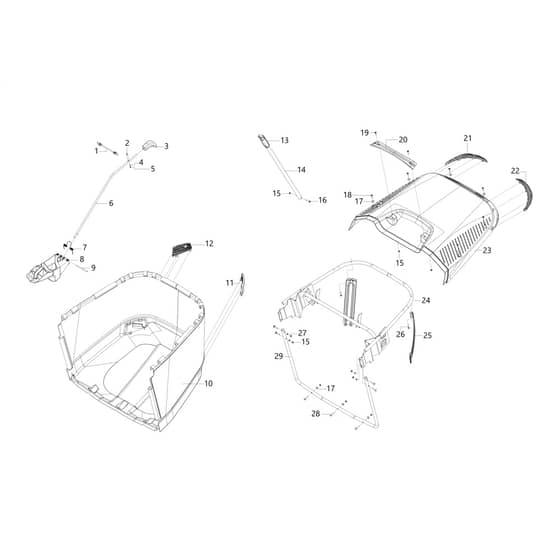

OM 105/16 K - 2023 - Oleo-Mac Ride On Mower Grasscatcher Diagram

Description

Oleo-Mac OM 105/16 K Parts Diagram

Model Year - 2023

Be the first to review this product

0 product questions

	Part No.	Details
1	AK461630 Available to backorder	Spring	£12.08 £10.07
2	AK46162030 Available to backorder	Tie Rod	£9.06 £7.55
3	AK514174 Available to backorder	Handle	£8.84 £7.37
4	AK700240 Available to backorder	Washer	£1.18 £0.98
5	AK700119 Available to backorder	Nut	£1.86 £1.55
6	AK46188101 Available to backorder	Tube	£27.64 £23.03
7	AK461799 Available to backorder	Spring	£9.92 £8.27
8	AK46179801 Available to backorder	Wedge	£36.19 £30.16
9	AK46188030 Available to backorder	Plug	£5.39 £4.49
11	AK473486 Available to backorder	Reflector SX. LEFT	£6.44 £5.37
12	AK473487 Available to backorder	Reflector DX. RIGHT	£6.44 £5.37
13	AK476155 Available to backorder	Handle	£19.12 £15.93
14	AK47356630 Available to backorder	Tube	£16.92 £14.10
15	AK704536 Out of stock	Nut	£0.97 £0.81
16	AK468568 Available to backorder	Screw	£1.18 £0.98
17	AK700148 In stock	Washer	£0.79 £0.66
18	AK468567 Available to backorder	Screw	£1.18 £0.98
19	AK706607 Available to backorder	Screw	£1.44 £1.20
21	AK4737191012 Available to backorder	Guard	£21.18 £17.65
22	AK4737181012R Available to backorder	Guard	£21.18 £17.65
23	EF68160012R Available to backorder	Cover	£134.24 £111.87
24	AK47326901 Available to backorder	Frame	£80.26 £66.88
25	AK47327601 Available to backorder	Plate	£10.92 £9.10
26	AK526135 Available to backorder	Screw	£1.18 £0.98
27	AK700137 In stock	Washer	£0.97 £0.81
28	AK700705 Available to backorder	Screw	£0.68 £0.57
29	AK473273 Available to backorder	Frame	£28.00 £23.33
