OM 103/21 - 2021 - Oleo-Mac Ride On Mower Optional on request Diagram

Name: OM 103/21 - 2021 - Oleo-Mac Ride On Mower Optional on request Diagram
SKU: om_103_21_2021_optional_on_request-group
Price: 0.87 GBP
Availability: InStock

Part No. om_103_21_2021_optional_on_request-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

OM 103/21 - 2021 - Oleo-Mac Ride On Mower Optional on request Diagram

Description

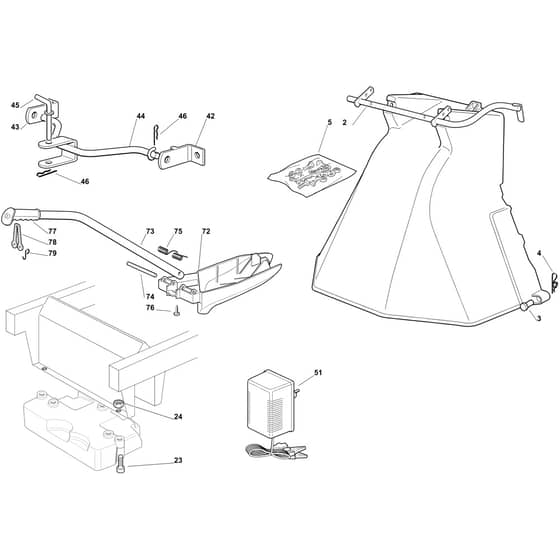

Oleo-Mac OM 103/21 Parts Diagram

Model Year - 2021

	Part No.	Details
2	MO382869035/0 Available to backorder	Tube	£39.42 £32.85
3	MO125510022/1 In stock	Pin	£3.10 £2.58
4	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO382735502/0 Available to backorder	Bracket	£13.94 £11.62
43	MO325774213/0 Available to backorder	Bracket	£5.65 £4.71
44	MO382033117/0 Available to backorder	Bar	£63.34 £52.78
45	MO125510021/1 In stock	Pin	£11.10 £9.25
46	MO124487999/0 Available to backorder	Cotter Pin	£1.84 £1.53
51	MO1134-9250-01 In stock	Battery Charger	£60.08 £50.07
72	MO125140091/0 Available to backorder	Deflector	£30.98 £25.82
73	MO325394005/0 Available to backorder	Handle	£21.82 £18.18
74	MO125510074/0 Available to backorder	Pin	£2.24 £1.87
75	MO125430240/0 Available to backorder	Spring	£6.05 £5.04
76	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
77	MO325280000/1 In stock	Knob	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod	£7.18 £5.98
79	MO125253004/0 In stock	Hook	£1.55 £1.29
