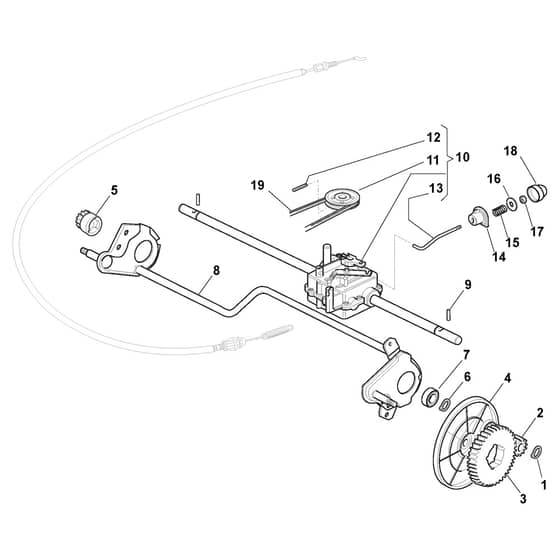

NP 534 TRV-B - 2016-2019 - 292155823/16 - Castel Garden Rotary Mower Transmission Diagram

Description

Castel Garden NP 534 TRV-B Parts Diagram

Product Name - NP 534 TRV - B

Model Year - 2016-2019

Model Type - NP 534 TR 3S

Art.N - 292155823/16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
3	MO122120105/2 Available to backorder	Ring Gear From 01-9-2016	£9.92 £8.27
4	MO322600268/0 Available to backorder	Protection. Wheel From 01-9-2012	£4.08 £3.40
4	MO322600091/1 Available to backorder	Internal Wheel Protectection To 31-8-2012	£5.64 £4.70
5	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
6	MO112608600/0 In stock	Seeger	£1.55 £1.29
7	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
8	MO381002811/0 Available to backorder	Rear Wheel Axle To 31-8-2012	£49.87 £41.56
8	MO381302867/0 Available to backorder	Axle. Rear Wheels From 01-9-2012	£69.35 £57.79
9	MO122753000/0 In stock	Pin	£1.55 £1.29
10	MO181003080/0 Available to backorder	F.R. Gear Box Pan.Np 3 Speed From 01-9-2003	£366.01 £305.01
11	MO122601909/0 In stock	Pulley To 31-8-2002	£5.64 £4.70
11	MO122601908/1 Available to backorder	Pulley From 01-9-2015	£11.53 £9.61
11	MO122601908/0 Available to backorder	Pulley From 01-9-2002 To 31-8-2015	£5.64 £4.70
12	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
13	MO122033282/1 Available to backorder	Adjustment Rod	£6.53 £5.44
14	MO122041957/1 Available to backorder	Bushing From 01-9-2001	£1.55 £1.29
15	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
16	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
19	MO135064197/0 Available to backorder	Trapezoidal Belt Z34 Lp 885	£10.98 £9.15
