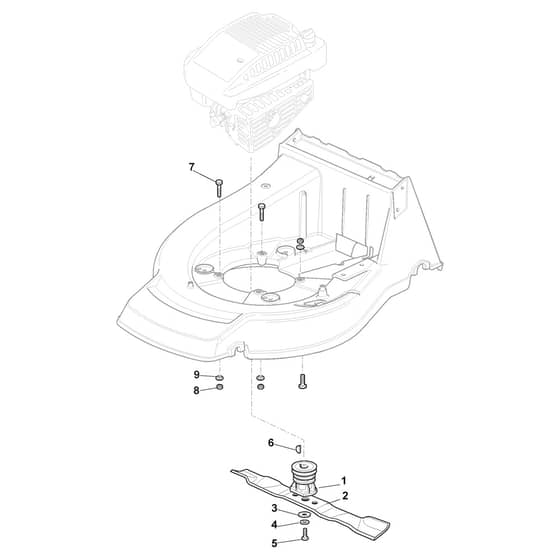

NP 534 TR-H - 2012-2018 - 292155033/12 - Castel Garden Rotary Mower Blade Diagram

Name: NP 534 TR-H - 2012-2018 - 292155033/12 - Castel Garden Rotary Mower Blade Diagram
SKU: np_534_tr_h_292155033_12_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. np_534_tr_h_292155033_12_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

NP 534 TR-H - 2012-2018 - 292155033/12 - Castel Garden Rotary Mower Blade Diagram

Description

Castel Garden NP 534 TR-H Parts Diagram

Product Name - NP 534 TR - H

Model Year - 2012-2018

Model Type - NP 534 TR

Art.N - 292155033/12

Engine Model -

	Part No.	Details
1	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25 From 01-1-2019	£9.23 £7.69
2	MO181004366/2 In stock	Blade Stiga Packed into 181004366.2 To 31-8-2018	£13.84 £11.53
2	MO181004381/1 In stock	Blade Standard	£15.41 £12.84
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO112521350/0 In stock	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
