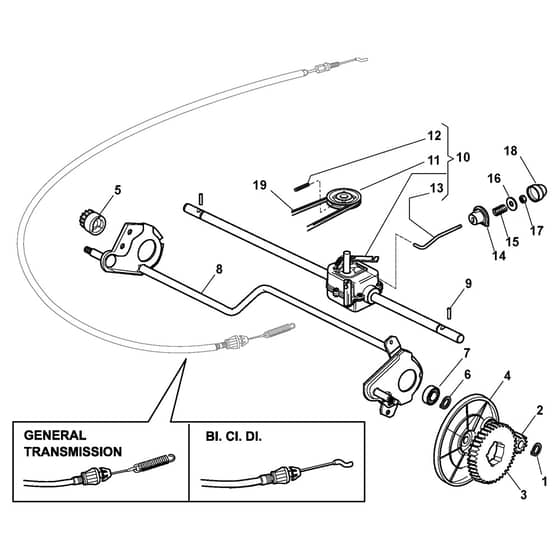

NP 534 TR-B - 2012-2015 - 292155023/12 - Castel Garden Rotary Mower Transmission Diagram

Name: NP 534 TR-B - 2012-2015 - 292155023/12 - Castel Garden Rotary Mower Transmission Diagram
SKU: np_534_tr_b_292155023_12_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

NP 534 TR-B - 2012-2015 - 292155023/12 - Castel Garden Rotary Mower Transmission Diagram

Description

Castel Garden NP 534 TR-B Parts Diagram

Product Name - NP 534 TR-B 675 series XLC Ready Start

Model Year - 2012-2015

Model Type - NP 534 TR

Art.N - 292155023/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
3	MO122120105/2 Available to backorder	Ring Gear From 01-9-2016	£9.92 £8.27
4	MO322600268/0 Available to backorder	Protection. Wheel From 01-9-2012	£4.08 £3.40
4	MO322600091/1 Available to backorder	Internal Wheel Protectection To 31-8-2012	£5.64 £4.70
5	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
6	MO112608600/0 In stock	Seeger	£1.55 £1.29
7	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
8	MO381302867/0 Available to backorder	Axle. Rear Wheels From 01-9-2012	£69.35 £57.79
8	MO381002811/0 Available to backorder	Rear Wheel Axle To 31-8-2012	£49.87 £41.56
9	MO122753000/0 In stock	Pin	£1.55 £1.29
10	MO181003079/1 In stock	Gear Box (Black) (General Transmission) From 01-9-2011	£70.82 £59.02
10	MO181003082/1 Available to backorder	Gear Box Bi.Ci.Di (Grey) (Bi. Ci. Di.) From 01-9-2005	£127.39 £106.16
11	MO122601909/0 In stock	Pulley From 01-9-2005	£5.64 £4.70
12	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
13	MO122033281/0 Available to backorder	Adjustment Rod From 01-9-2004	£4.78 £3.98
14	MO122041957/1 Available to backorder	Bushing From 01-9-2001	£1.55 £1.29
15	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
16	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
19	MO135064195/0 In stock	Trapezoidal Belt Z33	£10.76 £8.97
