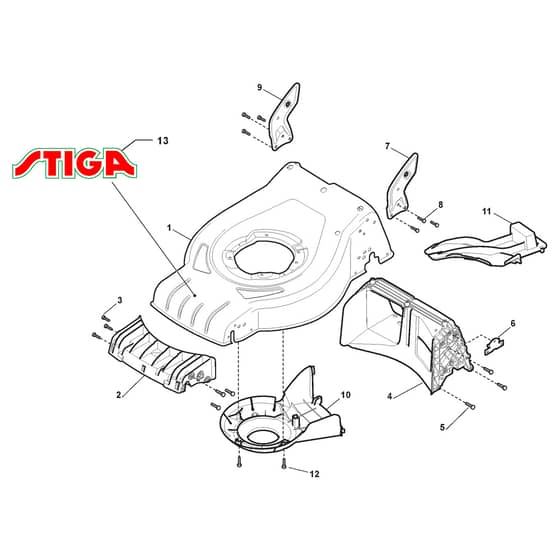

MULTIMOWER 53 S - 2013 - 295536144/S13 - Stiga Rotary Mower Deck Diagram

Name: MULTIMOWER 53 S - 2013 - 295536144/S13 - Stiga Rotary Mower Deck Diagram
SKU: multimower_53_s_295536144_s13_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTIMOWER 53 S - 2013 - 295536144/S13 - Stiga Rotary Mower Deck Diagram

Description

Stiga MULTIMOWER 53 S Parts Diagram

Product Name - MULTIMOWER 53 S

Model Year - 2013

Model Type - CRC 534 WS

Art.N - 295536144/S13

Engine Model - SA 55

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004935/1 Available to backorder	Black Deck	£197.09 £164.24
2	MO322108308/0 Available to backorder	Rear Conveyor Assy	£14.08 £11.73
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005183/1 Available to backorder	Left Bracket	£10.14 £8.45
8	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
9	MO381005181/1 Available to backorder	Right Bracket	£9.72 £8.10
10	MO322060250/1 In stock	Belt Protection	£10.84 £9.03
11	MO322140244/1 In stock	Mulching Plug	£16.34 £13.62
12	MO112728903/0 In stock	Screw	£1.40 £1.17
13	MO114367494/2 Available to backorder	Emblem Decal Stiga 3D 93 X 19mm	£9.16 £7.63
