MULTIMOWER 48 S - 2012-2013 - 295486144/S12 - Stiga Rotary Mower Transmission Diagram

Description

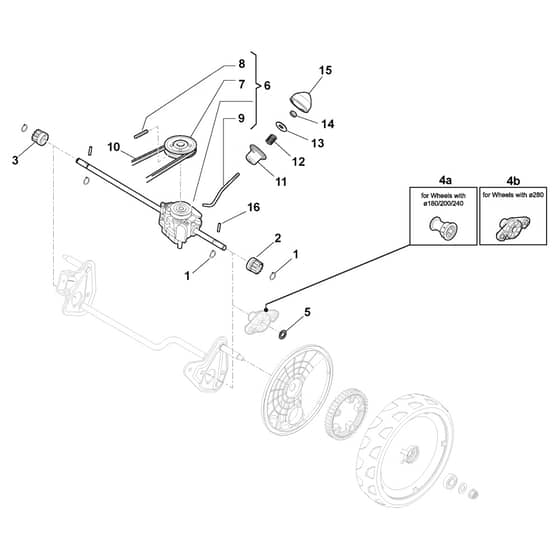

Stiga MULTIMOWER 48 S Parts Diagram

Product Name - MULTIMOWER 48 S

Model Year - 2012-2013

Model Type - CRL 484 WS

Art.N - 295486144/S12

Engine Model - SA 45

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
3	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
4	MO322042066/0 Available to backorder	Bushing (4A) For wheels ø180.200.240	£1.82 £1.52
5	MO112521371/0 Available to backorder	Washer	£1.55 £1.29
6	MO181003092/0 In stock	Gear Box	£69.71 £58.09
7	MO122601909/0 In stock	Pulley From 01-9-2013	£5.64 £4.70
8	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
9	MO122033283/0 In stock	Adjustment Rod	£4.66 £3.88
10	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
11	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
12	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
13	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
16	MO122753000/0 In stock	Pin D.5.2 X 25.65	£1.55 £1.29
