MULTIMOWER 48 S - 2012-2013 - 295486144/S12 - Stiga Rotary Mower Grass Catcher Diagram

Description

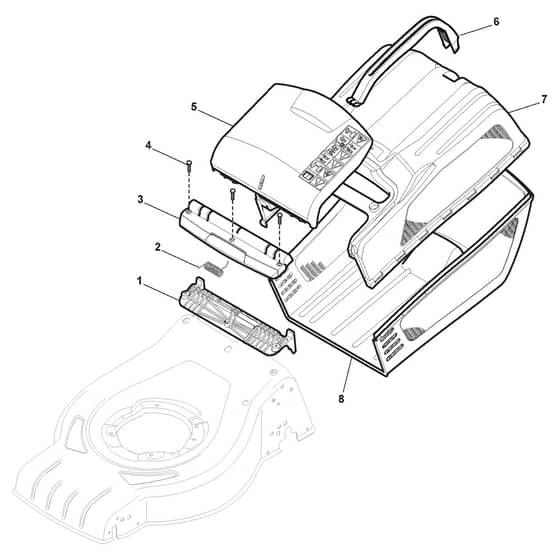

Stiga MULTIMOWER 48 S Parts Diagram

Product Name - MULTIMOWER 48 S

Model Year - 2012-2013

Model Type - CRL 484 WS

Art.N - 295486144/S12

Engine Model - SA 45

	Part No.	Details
1	MO322785331/0 Available to backorder	Black Stone Guard Support	£6.64 £5.53
2	MO122450464/0 Available to backorder	Spring	£2.24 £1.87
3	MO381008164/0 Available to backorder	Stone Guard Supp. Cover Yellow Yellow	£26.59 £22.16
3	MO322109557/0 Available to backorder	Stone Guard Supp. Cover Grey Grey	£24.78 £20.65
4	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
5	MO322600214/1 Available to backorder	Stone Guard. Yellow Yellow From 01-9-2011	£26.59 £22.16
5	MO322600216/1 Available to backorder	Stone Guard. Grey Grey From 01-9-2011	£13.66 £11.38
6	MO322393645/0 Available to backorder	Grasscatcher Handle. Grey Grey	£5.06 £4.22
7	MO322486260/0 Available to backorder	Grasscatcher Upper Part Grey Grey	£38.00 £31.67
8	MO322486261/0 Available to backorder	Grasscatcher Lower Part Grey Ggp Cr.Cs	£29.57 £24.64
