MULTICLIP PRO 53 SV - 2015-2018 - 293533038/S14 - Stiga Rotary Mower Transmission Diagram

Description

Stiga MULTICLIP PRO 53 SV Parts Diagram

Product Name - MULTICLIP PRO 53 SV

Model Year - 2015-2018

Model Type - MC 534 TR 4S

Art.N - 293533038/S14

Engine Model - GCV 190 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735662/1 In stock	Screw From 01-9-2009	£2.40 £2.00
2	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
4	MO122753002/0 Available to backorder	Pin	£1.97 £1.64
5	MO122671661/0 Available to backorder	Washer	£1.40 £1.17
6	MO122038406/0 Available to backorder	Bushing	£6.59 £5.49
8	MO322551661/0 Available to backorder	Plate	£12.82 £10.68
10	MO381002833/2 Available to backorder	Axle. Front Wheels From 01-9-2011	£79.86 £66.55

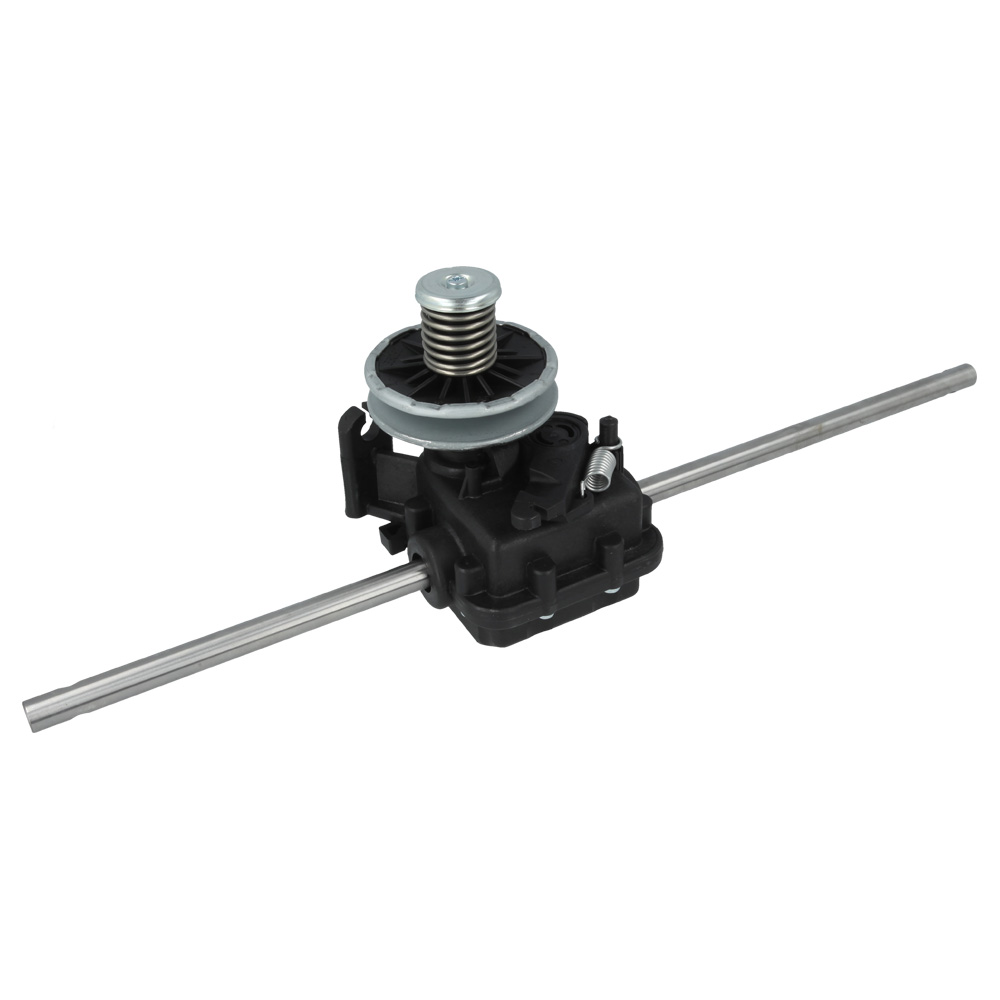

11	MO181003101/2 Available to backorder	Gear Box From 01-9-2011	£204.12 £170.10
12	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
13	MO122601916/0 Available to backorder	Belt Pulley To 31-8-2008	£61.33 £51.11
13	MO122601925/0 Available to backorder	Pulley From 01-9-2008 To 31-8-2013	£66.16 £55.13
13	MO122601932/0 In stock	Pulley From 01-9-2013	£57.43 £47.86
14	MO135064383/0 In stock	Belt	£14.41 £12.01
15	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
16	MO122601914/0 In stock	Pulley	£21.54 £17.95
17	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
19	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
20	MO122601915/0 In stock	Pulley	£21.40 £17.83
21	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
22	MO322320007/0 Available to backorder	Lever	£19.70 £16.42
23	MO112791011/0 Available to backorder	Screw	£1.40 £1.17

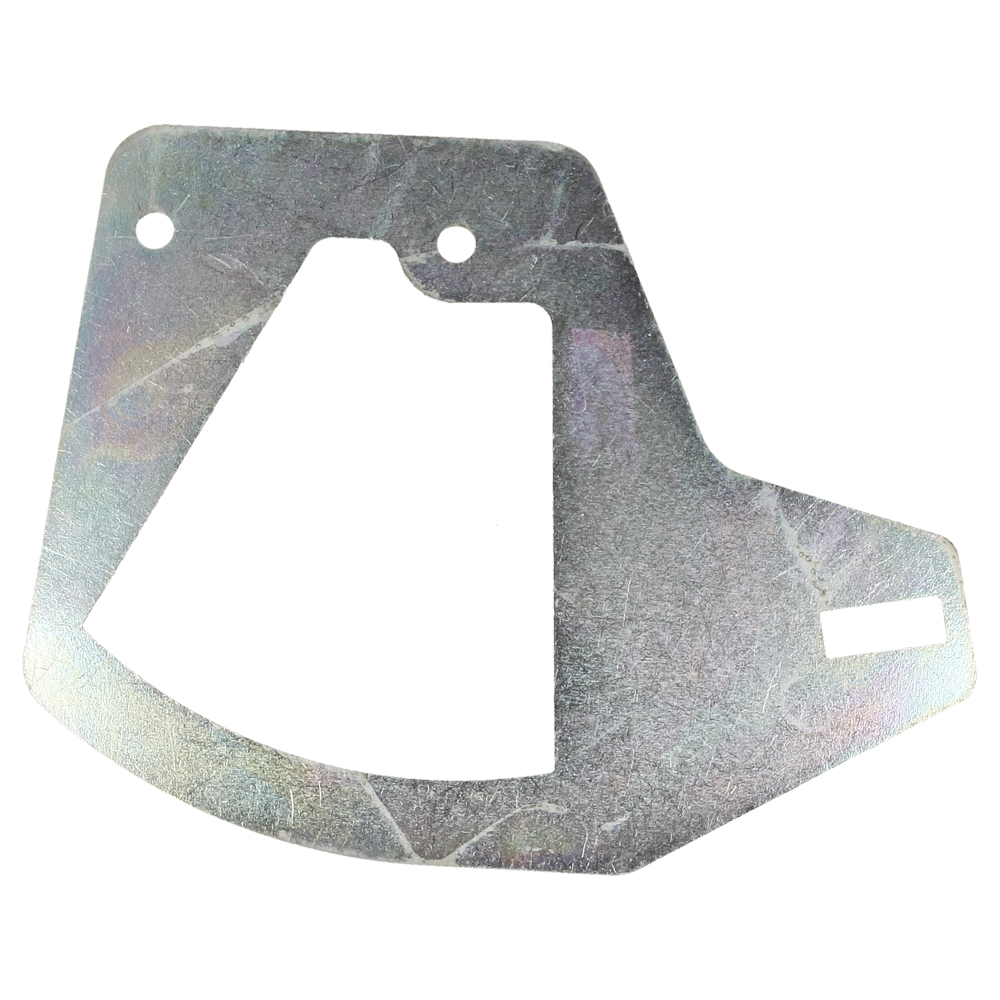

24	MO322806629/0 In stock	Pulley Lever Support	Was £20.94 £17.45 Special Price £11.99 £9.99
26	MO112714312/0 Available to backorder	Grub Screw	£1.55 £1.29
27	MO122601921/0 Available to backorder	Pulley. Crankshaft Ø 25 To 31-8-2009	£24.78 £20.65
27	MO122601920/0 Available to backorder	Pulley. Crankshaft Ø 25 From 01-9-2009	£56.56 £47.13
32	MO381007112/0 Available to backorder	Speed Control Ass.Y	£45.04 £37.53
33	MO322399820/0 Available to backorder	Knob	£3.38 £2.82
34	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
35	MO112727787/0 Available to backorder	Screw	£1.82 £1.52
36	MO112154510/0 In stock	Nut	£1.55 £1.29
37	MO112728704/1 Available to backorder	Self-Tap Screw K70 X 16	£1.55 £1.29
