MULTICLIP PRO 53 S S - 2009-2013 - 293532038/ST9 - Stiga Rotary Mower Blade Diagram

Description

Stiga MULTICLIP PRO 53 S S Parts Diagram

Product Name - MULTICLIP PRO 53 S S

Model Year - 2009-2013

Model Type - MC 534 TR

Art.N - 293532038/ST9

Engine Model - GCV 160 OHC Autochoke

	Part No.	Details

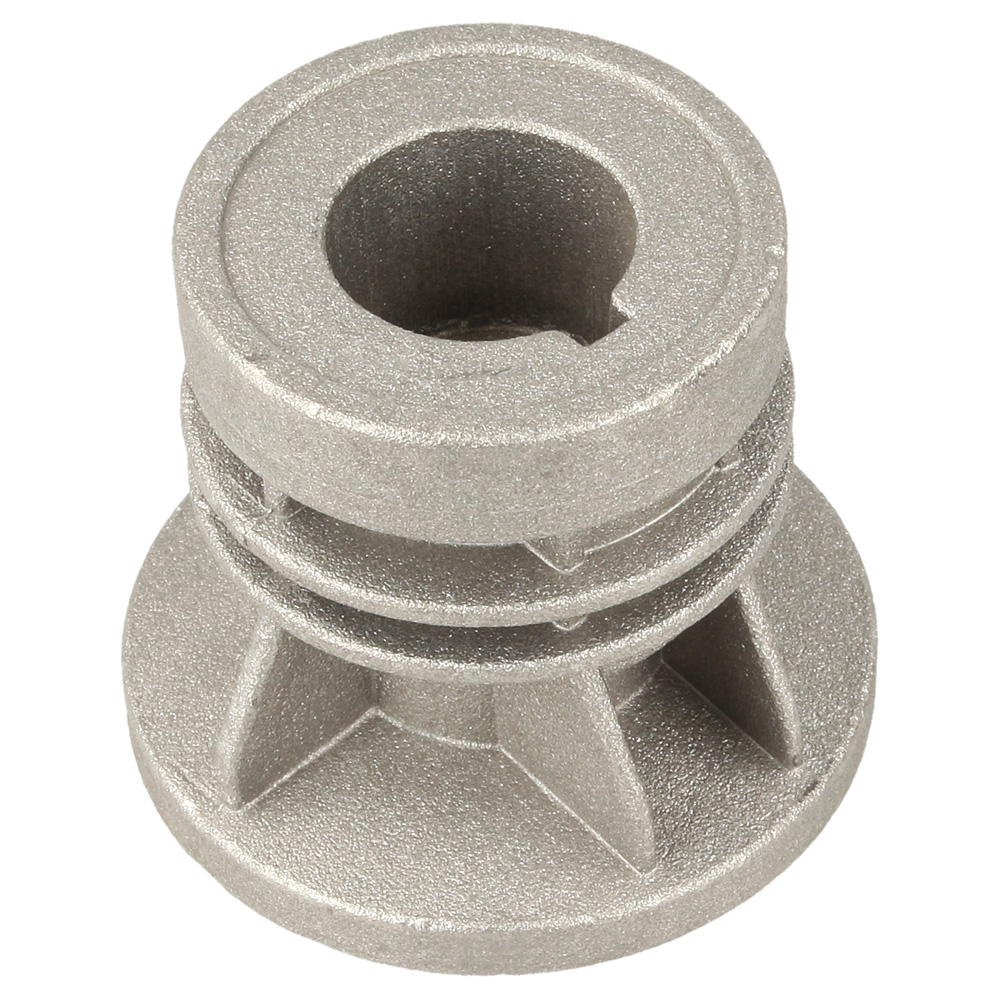

1	MO122465632/0 Available to backorder	Hub With Pulley. Crankshaft Ø 25	£12.66 £10.55
2	MO181004139/0 Available to backorder	Mulching Blade	£16.43 £13.69
3	MO322672110/1 In stock	Washer	£1.84 £1.53
4	MO322672105/0 In stock	Washer	£3.55 £2.96
5	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
8	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
9	MO122524329/0 Available to backorder	Pin	£12.26 £10.22
11	MO381207225/1 Available to backorder	Yellow Motor Flange Yellow	£36.59 £30.49
12	MO322250012/0 In stock	No Vibrations Rubber	£8.59 £7.16
13	MO322672201/0 In stock	Washer To 31-8-2009	£6.05 £5.04
14	MO112521350/0 In stock	Washer From 01-9-2009	£1.55 £1.29
14	MO122671651/0 In stock	Washer To 31-8-2009	£1.97 £1.64
15	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO112735108/1 In stock	Screw	£2.11 £1.76
17	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
18	MO122450449/0 Available to backorder	Tension Spring	£3.49 £2.91
