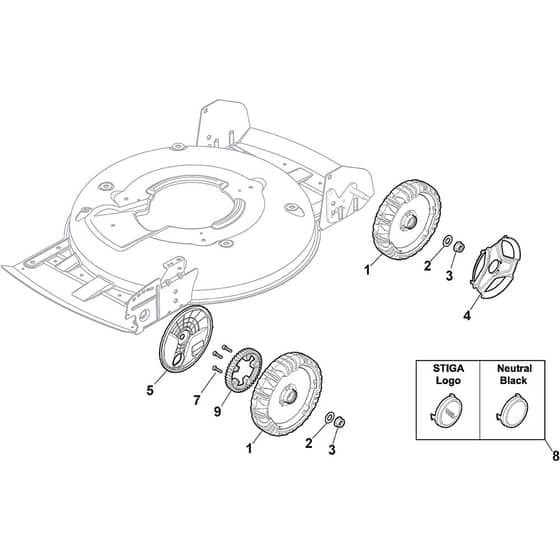

MULTICLIP PRO 50 SX H - 2019-2021 - 291502138/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga MULTICLIP PRO 50 SX H Parts Diagram

Product Name - MULTICLIP PRO 50 SX H

Model Year - 2019-2021

Model Type - MCS 504 TR

Art.N - 291502138/ST1

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	MO381007494/0 Available to backorder	Wheel Ø 210	£82.37 £68.64
2	MO112521350/0 In stock	Washer	£1.55 £1.29
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO322110796/0 Available to backorder	Hub Cap Grey	£3.10 £2.58
5	MO322600335/0 Available to backorder	Protection. Wheel	£4.64 £3.87
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO322110798/0 Available to backorder	Hub Cap Grey with STIGA Logo	£2.24 £1.87
9	MO322120119/0 Available to backorder	Plastic Drive Gear D.210	£5.22 £4.35
