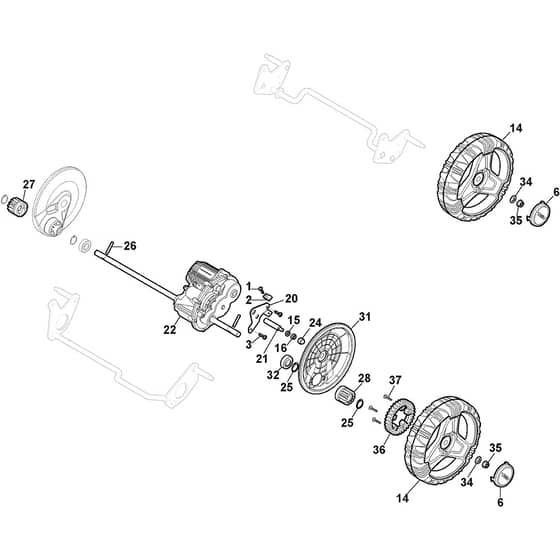

MULTICLIP PRO 50 S AE - 2018 - 291502108/ST1 - Stiga Rotary Mower Transmission Diagram

Name: MULTICLIP PRO 50 S AE - 2018 - 291502108/ST1 - Stiga Rotary Mower Transmission Diagram
SKU: multiclip_pro_50_s_ae_291502108_st1_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP PRO 50 S AE - 2018 - 291502108/ST1 - Stiga Rotary Mower Transmission Diagram

Description

Stiga MULTICLIP PRO 50 S AE Parts Diagram

Product Name - MULTICLIP PRO 50 S AE

Model Year - 2018

Model Type - MCS 500 ATR LI 80

Art.N - 291502108/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
2	MO118390022/0 Available to backorder	Conduit Clip	£1.55 £1.29
3	MO112728697/0 In stock	Screw	£1.55 £1.29
6	MO322110798/0 Available to backorder	Hub Cap Grey	£2.26 £1.88
14	MO381007494/0 Available to backorder	Wheel Ø 210	£82.36 £68.63
15	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
16	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
20	MO322778521/0 Available to backorder	Bracket	£4.08 £3.40
21	MO122524363/0 Available to backorder	Pin	£18.86 £15.72
22	MO118400992/0 Available to backorder	Gear Box	£252.35 £210.29
24	MO118203853/0 Available to backorder	Cap	£2.68 £2.23
25	MO112608600/0 In stock	Seeger	£1.55 £1.29
26	MO122753003/0 Available to backorder	Elastic Pin	£2.84 £2.37
27	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
28	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
31	MO322600335/0 Available to backorder	Protection. Wheel	£4.66 £3.88
32	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
34	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
35	MO112155000/0 In stock	Nut	£1.55 £1.29
36	MO322120119/0 Available to backorder	Wheels Crown	£5.02 £4.18
37	MO112735645/0 Available to backorder	Screw Tcb Torx M4 X 20	£1.82 £1.52
