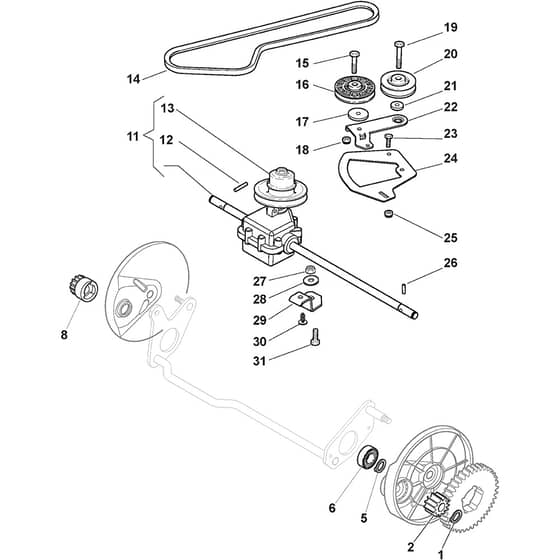

Stiga MULTICLIP PLUS 50 SEV B Parts Diagram

Product Name - MULTICLIP PLUS 50 SEV B

Model Year - 2016-2019

Model Type - MCS 504 TR/E 4S

Art.N - 291503528/S16

Engine Model - 675 IS series Instart

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
5	MO112608600/0 In stock	Seeger	£1.55 £1.29
6	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
8	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
11	MO181003098/2 Available to backorder	Gear Box	£168.92 £140.77
12	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
13	MO122601932/0 In stock	Pulley	£57.43 £47.86
14	MO135063902/1 In stock	Belt Trapezoidal belt Z29.5 To 31-8-2017	£9.49 £7.91
14	MO135064105/0 Available to backorder	Trapezoidal Belt Trapezoidal belt Z30 From 01-9-2017	£9.96 £8.30
15	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
16	MO122601914/0 In stock	Pulley	£21.54 £17.95
17	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
19	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
20	MO122601915/0 In stock	Pulley	£21.40 £17.83
21	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
22	MO322320007/0 Available to backorder	Lever	£19.70 £16.42
23	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
24	MO322806629/0 In stock	Pulley Lever Support	Was £20.94 £17.45 Special Price £11.99 £9.99
25	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO122753000/0 In stock	Pin	£1.55 £1.29
27	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO322551655/0 Available to backorder	Plate	£18.43 £15.36
30	MO112728704/1 Available to backorder	Screw	£1.55 £1.29
31	MO112793102/0 In stock	Screw Te M8X20 Uni 5739 Acc.8.8	£1.55 £1.29
