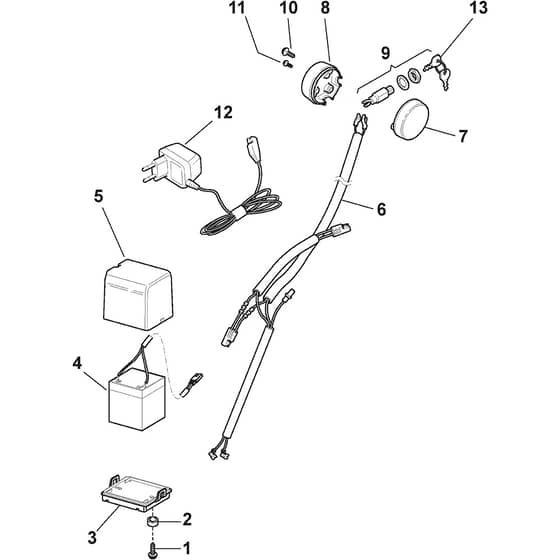

MULTICLIP PLUS 50 SE - 2014 - 291502648/S14 - Stiga Rotary Mower Electric Start Controls Diagram

Name: MULTICLIP PLUS 50 SE - 2014 - 291502648/S14 - Stiga Rotary Mower Electric Start Controls Diagram
SKU: multiclip_plus_50_se_291502648_s14_electric_start_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP PLUS 50 SE - 2014 - 291502648/S14 - Stiga Rotary Mower Electric Start Controls Diagram

Description

Stiga MULTICLIP PLUS 50 SE Parts Diagram

Product Name - MULTICLIP PLUS 50 SE

Model Year - 2014

Model Type - MCS 504 TR/E

Art.N - 291502648/S14

Engine Model - ST 55 OHV ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728450/0 In stock	Screw	£1.55 £1.29
2	MO125160012/0 Available to backorder	Spacer	£15.76 £13.13
3	MO322785122/0 Available to backorder	Battery Support	£3.70 £3.08
4	MO118120064/0 In stock	Battery	£44.70 £37.25
5	MO322109530/0 Available to backorder	Battery Cover	£4.93 £4.11
6	MO118204197/0 Available to backorder	Cable	£70.39 £58.66
7	MO322722801/0 Available to backorder	Starting Block Outer Half-Bearing	£1.82 £1.52
8	MO322722800/0 Available to backorder	Starting Block Inner Half-Bearing	£10.49 £8.74
9	MO118450051/0 Available to backorder	Switch From 01-9-2013	£18.59 £15.49
10	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
11	MO112728706/0 In stock	Screw	£1.55 £1.29
12	MO118204120/1LC In stock	Battery Charger (CE) From 01-9-2015	£27.04 £22.53
13	MO118210016/1 Available to backorder	Ignition Key [Pair]	£12.82 £10.68
