MULTICLIP PLUS 50 - 2012-2013 - 291501041/S10 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

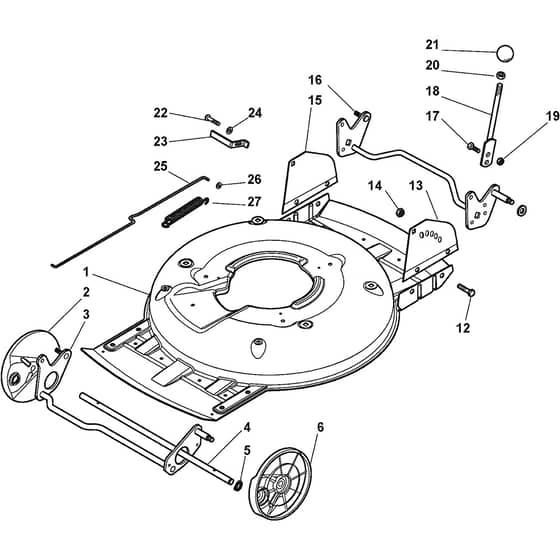

Stiga MULTICLIP PLUS 50 Parts Diagram

Product Name - MULTICLIP PLUS 50

Model Year - 2012-2013

Model Type - MCS 504

Art.N - 291501041/S10

Engine Model - SA 45 OHV

	Part No.	Details
1	MO381004735/1 Available to backorder	Grey Deck From 01-9-2016	£204.12 £170.10
2	MO122600093/0 Available to backorder	Left Wheel Protection To 31-8-2014	£3.38 £2.82
3	MO381002849/0 Available to backorder	Front Wheel Axle To 31-8-2012	£39.31 £32.76
3	MO381302863/0 Available to backorder	Axle. Front Wheels From 01-9-2012	£46.48 £38.73
4	MO322033397/0 Available to backorder	Front Wheel Axle	£9.86 £8.22
5	MO122020050/0 Available to backorder	Ring	£1.55 £1.29
6	MO322600267/0 Available to backorder	Protection. Wheel From 01-9-2014	£6.05 £5.04
6	MO122600092/0 Available to backorder	Right Wheel Protection To 31-8-2014	£3.38 £2.82
12	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
13	MO381545105/0 Available to backorder	Left Plate	£10.14 £8.45
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO381545104/0 Available to backorder	Right Plate	£10.40 £8.67
16	MO381302861/1 Available to backorder	Axle. Rear Wheels From 01-9-2013	£43.63 £36.36
17	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
18	MO381003323/0 Available to backorder	Lever. Height Adjustment	£15.97 £13.31
19	MO112154330/0 In stock	Nut	£1.55 £1.29
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO322399812/0 Available to backorder	Knob	£3.78 £3.15
22	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
23	MO322551529/0 Available to backorder	Wheels Cleaning Plate	£3.66 £3.05
24	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
25	MO122033329/0 Available to backorder	Rod. Height Adjustment	£9.42 £7.85
26	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
27	MO122446184/0 Available to backorder	Spring	£5.22 £4.35
