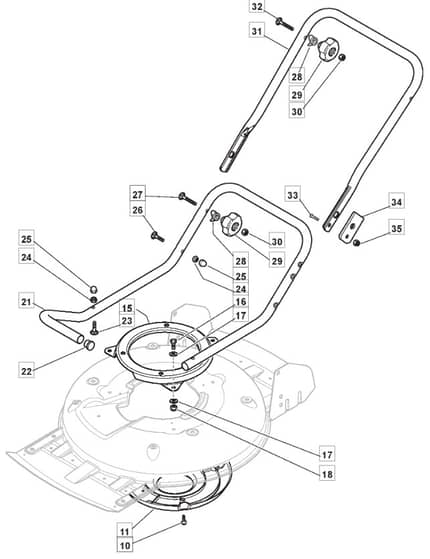

MULTICLIP MEL 46 HP - 2009 - 291500663/UM9 - Mountfield Rotary Mower Lower Handle Diagram

Name: MULTICLIP MEL 46 HP - 2009 - 291500663/UM9 - Mountfield Rotary Mower Lower Handle Diagram
SKU: multiclip_mel_46_hp_291500663_um9_lower_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP MEL 46 HP - 2009 - 291500663/UM9 - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield MULTICLIP MEL 46 HP Parts Diagram

Model Year - 2009

Model Type - MCS 500

Art.N - 291500663/UM9

Be the first to review this product

0 product questions

	Part No.	Details
10	MO112728903/0 In stock	Screw	£1.40 £1.17
11	MO322060220/0 Available to backorder	Belt Protection	£6.62 £5.52
15	MO322207219/1 Available to backorder	Flange	£25.76 £21.47
16	MO112793102/0 In stock	Screw	£1.55 £1.29
17	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
21	MO381006667/0 Available to backorder	Handle Lower Part Black	£40.82 £34.02
22	MO118566110/0 Available to backorder	Push Rod	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
25	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
26	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
27	MO112819203/0 Available to backorder	Screw From 01-9-2016	£1.55 £1.29
28	MO122680006/1 In stock	Washer	£1.75 £1.46
29	MO122399900/0 In stock	Black Knob	£1.55 £1.29
30	MO112293200/0 In stock	Nut	£1.55 £1.29
32	MO112819201/0 In stock	Screw	£2.81 £2.34
33	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
34	MO322551578/0 Available to backorder	Plate	£2.12 £1.77
35	MO112154330/0 In stock	Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55 £1.29
