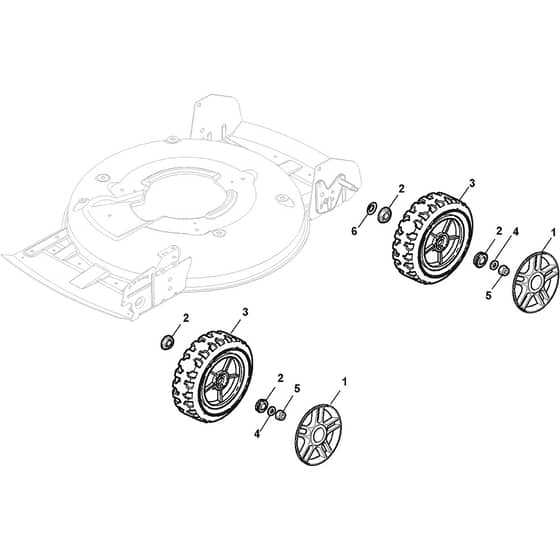

MULTICLIP EURO 50 SE - 2012-2013 - 291502541/S12 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga MULTICLIP EURO 50 SE Parts Diagram

Product Name - MULTICLIP EURO 50 SE

Model Year - 2012-2013

Model Type - MCS 504 TR/E

Art.N - 291502541/S12

Engine Model - SA 55 OHV ES

	Part No.	Details
1	MO322110492/0 Available to backorder	Hub Cap Grey	£2.29 £1.91
2	MO119216035/0 In stock	Bearing From 01-9-2012	£3.52 £2.93
2	MO122122206/0 In stock	Bearing To 31-8-2012	£1.84 £1.53
3	MO381007490/0 Available to backorder	Wheel Ø 210 From 01-9-2012	£25.00 £20.83
3	MO381007360/0 Available to backorder	Wheel To 31-8-2012	£16.61 £13.84
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112530150/0 In stock	Spring Washer M12	£1.39 £1.16
