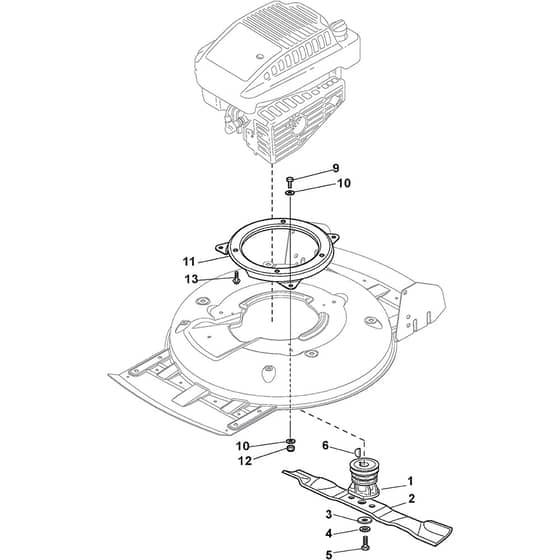

MULTICLIP EURO 50 SE - 2012-2013 - 291502541/S12 - Stiga Rotary Mower Blade Diagram

Name: MULTICLIP EURO 50 SE - 2012-2013 - 291502541/S12 - Stiga Rotary Mower Blade Diagram
SKU: multiclip_euro_50_se_291502541_s12_blade-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP EURO 50 SE - 2012-2013 - 291502541/S12 - Stiga Rotary Mower Blade Diagram

Description

Stiga MULTICLIP EURO 50 SE Parts Diagram

Product Name - MULTICLIP EURO 50 SE

Model Year - 2012-2013

Model Type - MCS 504 TR/E

Art.N - 291502541/S12

Engine Model - SA 55 OHV ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2010	£9.29 £7.74
2	MO181004146/0 In stock	Blade Standard	£14.95 £12.46
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
11	MO322207219/1 Available to backorder	Flange	£25.76 £21.47
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO112735108/1 Available to backorder	Screw From 01-9-2014	£2.12 £1.77
13	MO112735109/2 Available to backorder	Telf-Form Screw Te Fl 3.8" X 1"	£2.50 £2.08
