MULTICLIP EURO 50 H - 2012-2013 - 291501131/S12 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

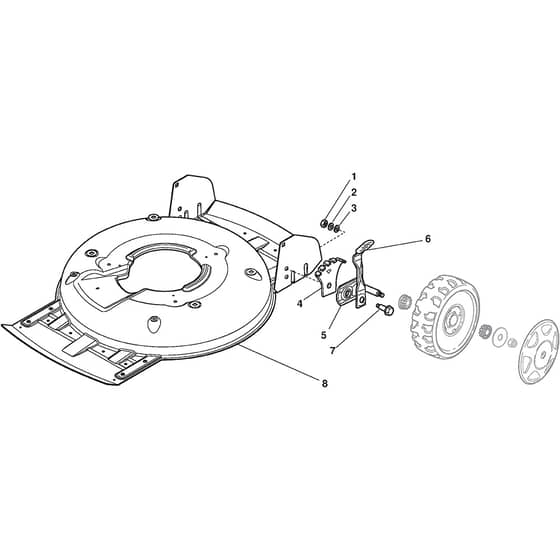

Stiga MULTICLIP EURO 50 H Parts Diagram

Product Name - MULTICLIP EURO 50 H

Model Year - 2012-2013

Model Type - MCS 504

Art.N - 291501131/S12

Engine Model - GCV 135 OHC

	Part No.	Details
1	MO112293200/0 In stock	Nut	£1.55 £1.29
2	MO112583500/0 In stock	Grower	£1.55 £1.29
3	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
4	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.24 £1.87
5	MO381005084/0 Available to backorder	Wheel Support To 31-8-2012	£8.18 £6.82
5	MO381005175/1 Available to backorder	Support. Wheel From 01-6-2018	£8.18 £6.82
6	MO481003286/0 Available to backorder	Lever. Height Adjustment	£4.78 £3.98
7	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
8	MO381004734/1 Available to backorder	Deck Multiclip 50 [Grey]	£204.12 £170.10
