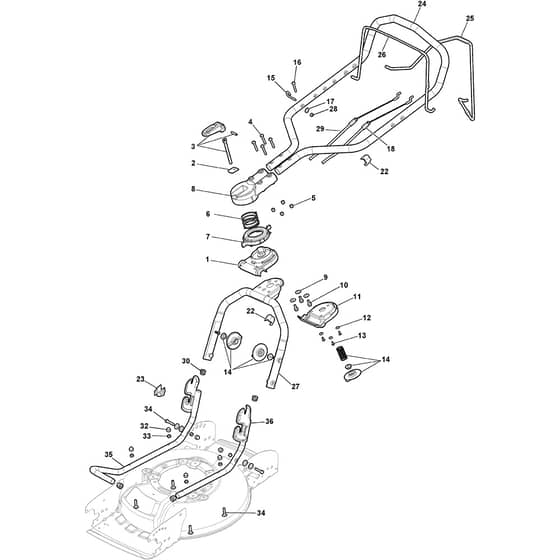

MULTICLIP 950 VE - 2022-2024 - 291503548/ST1 - Stiga Rotary Mower Handle Diagram

Name: MULTICLIP 950 VE - 2022-2024 - 291503548/ST1 - Stiga Rotary Mower Handle Diagram
SKU: multiclip_950_ve_291503548_st1_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 950 VE - 2022-2024 - 291503548/ST1 - Stiga Rotary Mower Handle Diagram

Description

Stiga MULTICLIP 950 VE Parts Diagram

Product Name - MULTICLIP 950 VE

Model Year - 2022-2024

Model Type - MCS 504 TR/E 4S

Art.N - 291503548/ST1

Engine Model - ST 200 LS OHV Autochoke Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005275/0 In stock	Lower Handle Upper Cover	£21.83 £18.19
2	MO322981479/0 Available to backorder	Block Plate Fulcrum Handle	£1.69 £1.41
3	MO381103382/1 Available to backorder	Handle Fulcrum Lever Assy	£17.78 £14.82
4	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
6	MO122450498/0 Available to backorder	Handle Fulcrum Spring	£3.79 £3.16
7	MO322245070/0 Available to backorder	Handle Fulcrum Flange	£17.78 £14.82
8	MO381005277/0 In stock	Upper Handle Fulcrum	£22.46 £18.72
9	MO112523040/0 In stock	Washer	£1.49 £1.24
10	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
11	MO322570217/0 Available to backorder	Lower Handle Lower Cover	£2.47 £2.06
12	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
13	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
14	MO381108620/0 Available to backorder	Knobs Assy	£3.19 £2.66
15	MO122430323/0 Available to backorder	Spring Not for model with electric start	£2.68 £2.23
16	MO112727799/0 Available to backorder	Screw Not for model with electric start	£1.82 £1.52
17	MO112521330/0 Available to backorder	Washer Not for model with electric start	£1.55 £1.29
18	MO381030171/0 Available to backorder	Clutch Cable	£20.95 £17.46
22	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
23	MO133320504/0 Available to backorder	Fairlead Only for self propelled electric start	£1.97 £1.64
24	MO381007714/0 Available to backorder	Upper Handle. Grey	£86.71 £72.26
25	MO181103525/0 Available to backorder	Drive Lever. Black	£23.40 £19.50
26	MO181103526/1 Available to backorder	Brake Lever	£23.77 £19.81
27	MO381007716/0 Available to backorder	Middle Handle. Grey	£56.27 £46.89
28	MO112154510/0 In stock	Nut Not for model with electric start	£1.55 £1.29
29	MO181030088/0 In stock	Cable. Thread Engine Brake	£13.51 £11.26
30	MO118566110/0 Available to backorder	Push Rod	£1.55 £1.29
32	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
33	MO112155000/0 In stock	Nut	£1.55 £1.29
34	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
35	MO381007717/0 Available to backorder	Rh Lower Handle. Grey	£39.88 £33.23
36	MO381007718/0 Available to backorder		£31.96 £26.63
