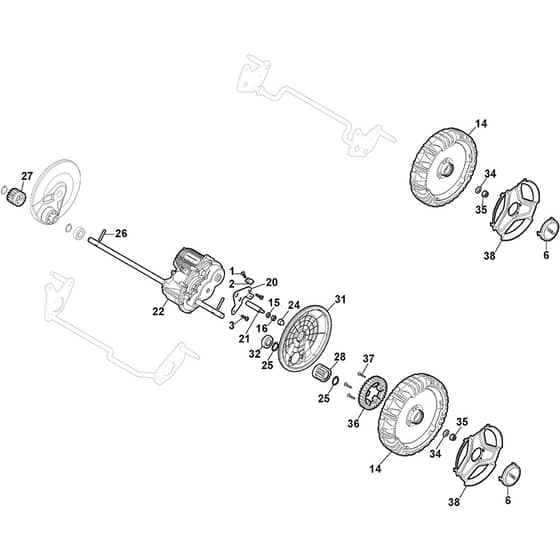

MULTICLIP 750 S AE - 2021 - 291503178/ST1 - Stiga Rotary Mower Transmission and Wheels Diagram

Description

Stiga MULTICLIP 750 S AE Parts Diagram

Product Name - MULTICLIP 750 S AE

Model Year - 2021

Model Type - MCS 500 ATR LI D48

Art.N - 291503178/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
2	MO118390023/0 Available to backorder	Wire Clip	£1.55 £1.29
3	MO112728697/0 In stock	Screw	£1.55 £1.29
6	MO322110798/0 Available to backorder	Hub Cap Grey	£2.26 £1.88
14	MO381007498/0 Available to backorder	Wheel Ø 210	£32.38 £26.98
15	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
16	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
20	MO322778525/0 Available to backorder	Bracket	£6.34 £5.28
21	MO122524363/0 Available to backorder	Pin	£18.86 £15.72
22	MO181003137/0 Available to backorder	Electric Transmission	£161.89 £134.91
24	MO118203853/0 Available to backorder	Cap	£2.68 £2.23
25	MO112608600/0 In stock	Seeger	£1.55 £1.29
26	MO122753000/0 In stock	Pin	£1.55 £1.29
27	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
28	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
31	MO322600335/0 Available to backorder	Protection. Wheel	£4.66 £3.88
32	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
34	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
35	MO112155000/0 In stock	Nut	£1.55 £1.29
36	MO322120119/0 Available to backorder	Wheels Crown	£5.02 £4.18
37	MO112728706/0 In stock	Screw	£1.55 £1.29
38	MO322110796/0 Available to backorder	Hub Cap Grey	£2.98 £2.48
39	MO112000956/0 Available to backorder	Circlip D.9 C60 Din 6799	£1.40 £1.17
