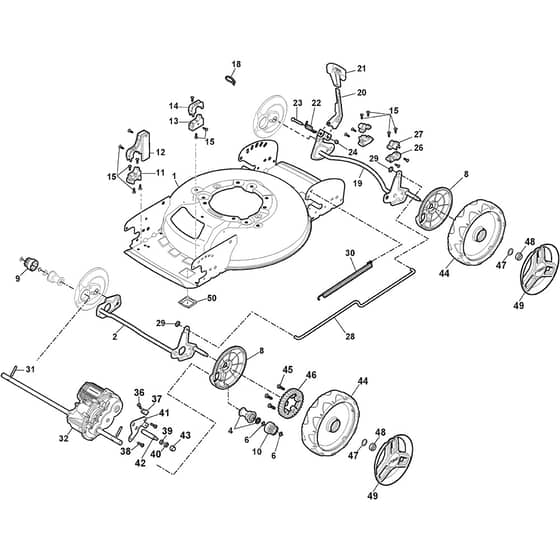

Stiga MULTICLIP 747e V Kit Parts Diagram

Product Name - MULTICLIP 747e V Kit

Model Year - 2023-2025

Model Type - MCS 470 ATR LI D48

Art.N - 298473278/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005601/0 Available to backorder	Grey Deck	£168.92 £140.77
2	MO381302919/0 Available to backorder	Front Wheel Axle	£27.74 £23.12
4	MO381001133/0 Available to backorder	Bushing	£13.51 £11.26
6	MO112608600/0 In stock	Seeger	£1.55 £1.29
8	MO322600204/0 Available to backorder	Internal Wheel Protectection	£3.24 £2.70
9	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
10	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
11	MO322785476/0 Available to backorder	Support	£3.24 £2.70
12	MO322785477/1 Available to backorder	Shaft Bush Support	£4.93 £4.11
13	MO322785478/0 Available to backorder	Support	£3.24 £2.70
14	MO322785479/0 Available to backorder	Support	£3.24 £2.70
18	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
19	MO381302879/0 Available to backorder	Rear Wheel Axle	£26.18 £21.82
20	MO322322857/0 Available to backorder	Lever. Height Adjustment	£5.92 £4.93
21	MO322394528/0 Available to backorder	Knob	£4.78 £3.98
22	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
23	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
24	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO322785474/0 Available to backorder	Support	£1.55 £1.29
27	MO322785475/0 Available to backorder	Sector. Height Adjustment	£1.55 £1.29
28	MO122033332/0 Available to backorder	Adjustment Rod	£11.12 £9.27
29	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
30	MO122446184/0 Available to backorder	Spring	£5.21 £4.34
31	MO122753000/0 In stock	Pin	£1.55 £1.29
32	MO181003138/0 Available to backorder	Gear Box	£161.89 £134.91
34	MO112155015/0 Available to backorder	Nut	£1.69 £1.41
35	MO122671661/0 Available to backorder	Washer	£1.40 £1.17
36	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
37	MO118390023/0 Available to backorder	Wire Clip	£1.55 £1.29
38	MO112728697/0 In stock	Screw	£1.55 £1.29
39	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
40	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
41	MO322778525/0 Available to backorder	Bracket	£6.34 £5.28
42	MO122524363/0 Available to backorder	Pin To S.N 21CA2WBH031319	£18.86 £15.72
42	MO122524363/1 Available to backorder	Pin From S.N 21CA2WBH031320	£19.01 £15.84
43	MO118203853/0 Available to backorder	Cap	£2.68 £2.23
44	MO381007465/1 Available to backorder	Wheel - Long Hub	£22.81 £19.01
45	MO112728706/0 In stock	Screw	£1.55 £1.29
46	MO322120116/0 Available to backorder	Wheels Crown	£4.22 £3.52
47	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO322110744/0 Available to backorder	Hub Cap Grey	£3.52 £2.93
50	MO322820088/0 Available to backorder	Plug Closing Hole Tract.Elettr.Mc47-50	£2.12 £1.77
