MULTICLIP 747 S AE - 2021 - 298473178/ST1 - Stiga Rotary Mower Handle Diagram

Description

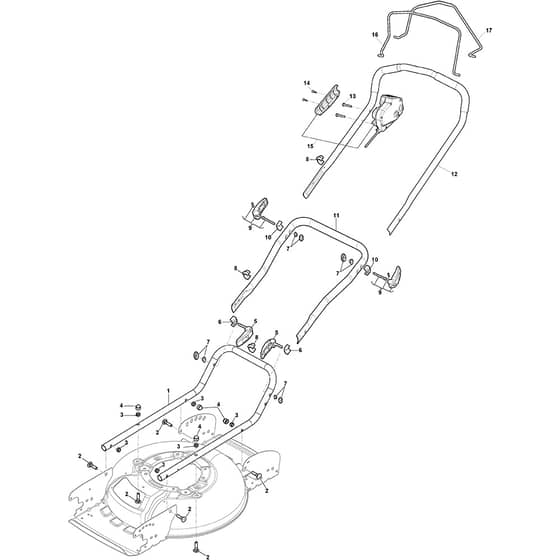

Stiga MULTICLIP 747 S AE Parts Diagram

Product Name - MULTICLIP 747 S AE

Model Year - 2021

Model Type - MCS 470 ATR LI D48

Art.N - 298473178/ST1

Engine Model -

	Part No.	Details
1	MO381007556/0 Available to backorder	Handle. Lower Part Yellow	£40.82 £34.02
2	MO112818900/0 In stock	Screw	£1.55 £1.29
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
5	MO381103359/1 In stock	Locking Handle Lever	£5.06 £4.22
6	MO322680017/0 Available to backorder	Washer	£1.97 £1.64
7	MO381004310/0 In stock	Nut-Knob Assy	£1.97 £1.64
8	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
9	MO381103360/0 In stock	Locking Handle Lever	£5.47 £4.56
10	MO322680016/1 In stock	Handle Fixing Washer	£1.97 £1.64
11	MO381007624/1 Available to backorder	Lower Handle. Yellow	£28.14 £23.45
12	MO381007676/0 Available to backorder	Upper Handle. Yellow	£46.48 £38.73
13	MO112727799/0 Available to backorder	Screw	£1.84 £1.53
14	MO112728706/0 In stock	Screw	£1.60 £1.33
15	MO381600602/0 Available to backorder	Dead Hand Switch - Battery	£68.42 £57.02
16	MO181103522/1 Available to backorder	Opc Lever	£21.41 £17.84
17	MO181103523/0 Available to backorder	Drive Lever [Black]	£20.69 £17.24
