MULTICLIP 504 PDQ 4S - 2008 - 291553043/UM8 - Mountfield Rotary Mower Transmission Diagram

Description

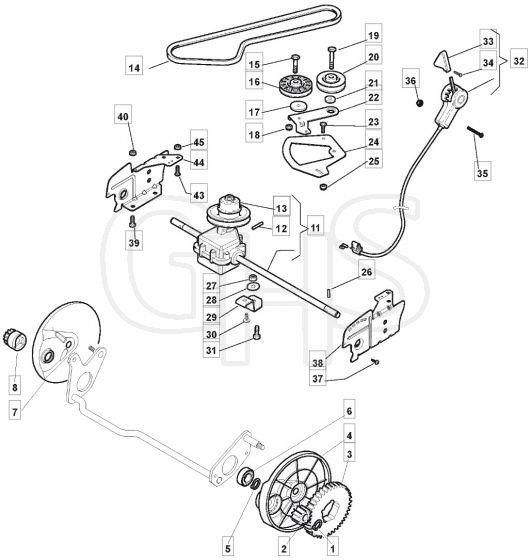

Mountfield MULTICLIP 504 PDQ 4S Parts Diagram

Product Name - MULTICLIP 504 PDQ 4S

Model Year - 2008

Model Type - MCS 504 TR 4S SIL

Art.N - 291553043/UM8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
3	MO122120105/2 Available to backorder	Ring Gear	£9.92 £8.27
4	MO122600092/0 Available to backorder	Right Wheel Protection	£3.38 £2.82
5	MO112608600/0 In stock	Seeger	£1.55 £1.29
6	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
7	MO122600093/0 Available to backorder	Left Wheel Protection	£3.38 £2.82
8	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
11	MO181003098/2 Available to backorder	Gear Box	£168.92 £140.77
12	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
13	MO122601925/0 Available to backorder	Pulley From 01-9-2008	£66.16 £55.13
13	MO122601916/0 Available to backorder	Belt Pulley To 31-8-2008	£61.33 £51.11
14	MO135064010/0 In stock	Belt	£14.06 £11.72
15	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
16	MO122601914/0 In stock	Pulley	£21.54 £17.95
17	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
19	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
20	MO122601915/0 In stock	Pulley	£21.40 £17.83
21	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
22	MO322320007/0 Available to backorder	Lever	£19.70 £16.42
23	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
26	MO122753000/0 In stock	Pin	£1.55 £1.29
27	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO322551655/0 Available to backorder	Plate	£18.43 £15.36
30	MO112728704/1 Available to backorder	Screw	£1.55 £1.29
31	MO112793102/0 In stock	Screw	£1.55 £1.29
32	MO381007112/0 Available to backorder	Speed Control Ass.Y	£45.04 £37.53
33	MO322399809/0 Available to backorder	Knob	£1.55 £1.29
34	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
35	MO112727787/0 Available to backorder	Screw	£1.82 £1.52
36	MO112154510/0 In stock	Nut	£1.55 £1.29
37	MO112728450/0 In stock	Screw	£1.55 £1.29
38	MO322778421/0 Available to backorder	Left Bracket	£14.08 £11.73
39	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
40	MO112293201/0 In stock	Nut	£1.69 £1.41
43	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
44	MO322778419/0 Available to backorder	Right Bracket	£14.08 £11.73
45	MO112292102/0 In stock	Flanged Hexagonal Nut M6	£1.69 £1.41
