MULTICLIP 504 PDQ 4S - 2008 - 291553043/UM8 - Mountfield Rotary Mower Engine Diagram

Description

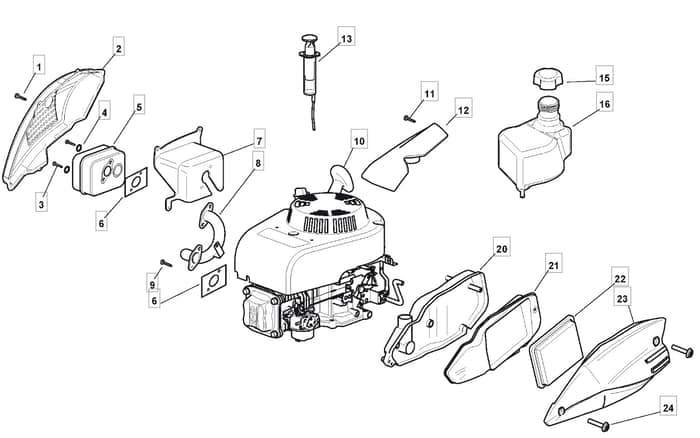

Mountfield MULTICLIP 504 PDQ 4S Parts Diagram

Product Name - MULTICLIP 504 PDQ 4S

Model Year - 2008

Model Type - MCS 504 TR 4S SIL

Art.N - 291553043/UM8

	Part No.	Details
1	MO112735111/0 Available to backorder	Screw	£1.84 £1.53
4	MO112582100/0 Available to backorder	Grower	£1.63 £1.36
5	MO118550269/0 Available to backorder	Muffler	£35.20 £29.33
6	MO118550270/0 Available to backorder	Muffler Gasket	£12.11 £10.09
9	MO112735599/0 In stock	Screw	£1.55 £1.29
13	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
15	MO127790000/1 In stock	Fuel Cap	£6.37 £5.31
22	MO118550257/0 In stock	Air Filter	£10.45 £8.71
