MULTICLIP 501 PD - 2009 - 291502043/UM9 - Mountfield Rotary Mower Throttle Diagram

Description

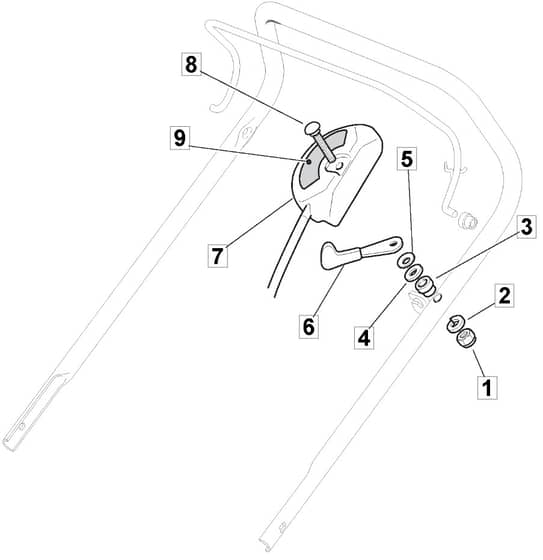

Mountfield MULTICLIP 501 PD Parts Diagram

Product Name - MULTICLIP 501 PD

Model Year - 2009

Model Type - MCS 504 TR

Art.N - 291502043/UM9

	Part No.	Details
1	MO112291000/0 Available to backorder	Nut	£1.55 £1.29
2	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112521360/0 In stock	Washer	£1.55 £1.29
5	MO112508100/0 Available to backorder	Cup Spring	£1.55 £1.29
6	MO381007279/1 Available to backorder	Throttle Lever - St.Honda.Tecumseh.B&S 625-675-675Es-700-750 Series To 31-8-2017	£1.52 £1.27
7	MO481007080/0 In stock	Throttle Cable	£24.49 £20.41
8	MO112815000/0 Available to backorder	Screw	£1.55 £1.29
9	MO114356702/0 Available to backorder	Throttle Decal	£1.97 £1.64
