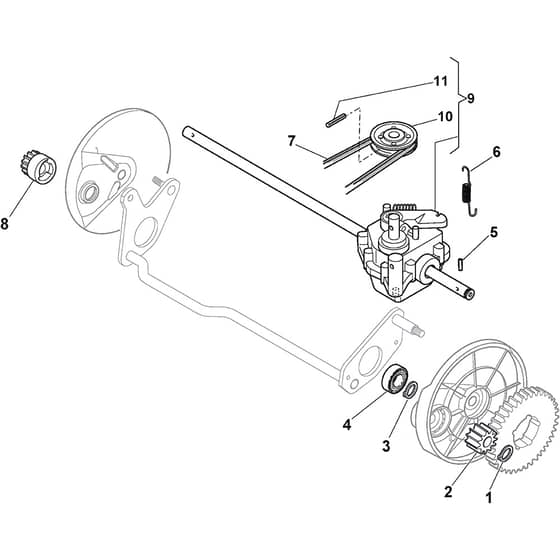

MULTICLIP 50 SXE - 2019-2021 - 291502548/ST1 - Stiga Rotary Mower Transmission Diagram

Description

Stiga MULTICLIP 50 SXE Parts Diagram

Product Name - MULTICLIP 50 SXE

Model Year - 2019-2021

Model Type - MCS 504 TR/E

Art.N - 291502548/ST1

Engine Model - ST 170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
3	MO112608600/0 In stock	Seeger	£1.55 £1.29
4	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
5	MO122753000/0 In stock	Pin	£1.55 £1.29
6	MO122450437/0 Available to backorder	Spring From 01-10-2017	£3.10 £2.58
6	MO122450439/0 Available to backorder	Spring To 30-9-2017	£3.38 £2.82
7	MO135064105/0 Available to backorder	Trapezoidal Belt Trapezoidal belt Z30 From 01-9-2017	£9.96 £8.30
7	MO135063902/1 In stock	Belt Trapezoidal belt Z29.5 To 31-8-2017	£9.49 £7.91
8	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
9	MO181003127/0 In stock	Gear Box Assy From 01-10-2017	£129.52 £107.93
9	MO181003109/1A Available to backorder	Gear Box To 31-8-2016	£163.86 £136.55
9	MO181003122/0 Available to backorder	Gear Box From 01-9-2016 To 30-9-2017	£77.66 £64.72
10	MO122601909/0 In stock	Pulley	£5.64 £4.70
11	MO112645705/0 In stock	Roll Pin D.5 X 32	£1.55 £1.29
